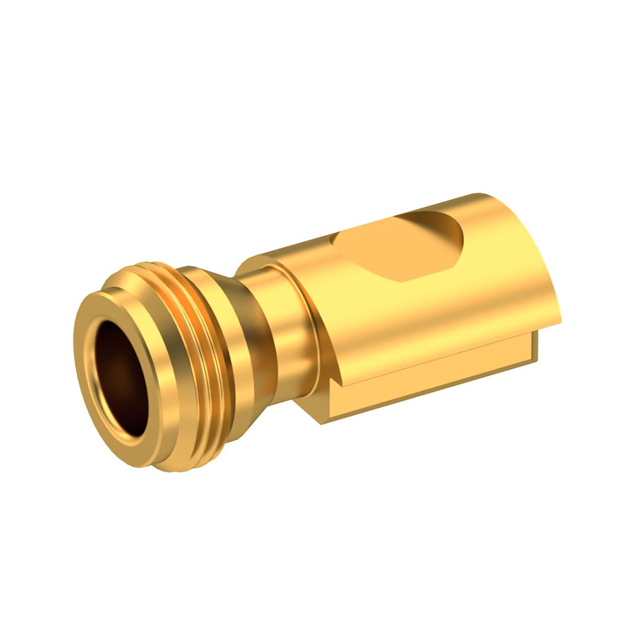

R161427223

Active

Radiall USA, Inc.

N / EDGE CARD FEMALE RECEPTACLE

Search across all available documentation for this part.

Active

Radiall USA, Inc.

N / EDGE CARD FEMALE RECEPTACLE

Technical Specifications

Parameters and characteristics for this part

Specification	R161427223

Body Finish	Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	N Type
Connector Type	Receptacle, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Housing Color	Gold
Impedance	50 Ohms
Ingress Protection	IP67 - Dust Tight, Waterproof
Insertion Loss	0.15 dB
Mating Cycles	500
Mounting Type	Cutout, Board Edge, Surface Mount
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder
Voltage Rating	1400 V

Part	Housing Color	Operating Temperature [Max]	Operating Temperature [Min]	Insertion Loss	Center Contact Material	Connector Style	Voltage Rating	Mounting Type	Center Contact Plating	Connector Type	Frequency - Max [Max]	Ingress Protection	Contact Termination	Mating Cycles	Body Material	Number of Ports	Body Finish	Dielectric Material	Shield Termination	Impedance
Radiall USA, Inc. R161427223	Gold	155 °C	-55 °C	0.15 dB	Beryllium Copper	N Type	1400 V	Board Edge Cutout Surface Mount	Gold	Female Socket Receptacle	11 GHz	IP67 - Dust Tight Waterproof	Solder	500	Brass	1	Gold	Polytetrafluoroethylene (PTFE)	Solder	50 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 15.63

General part information

N Type Connector Receptacle, Female Socket 50 Ohms Board Edge, Cutout; Surface Mount Solder
