78HJ01GWRT

Active

Grayhill Inc.

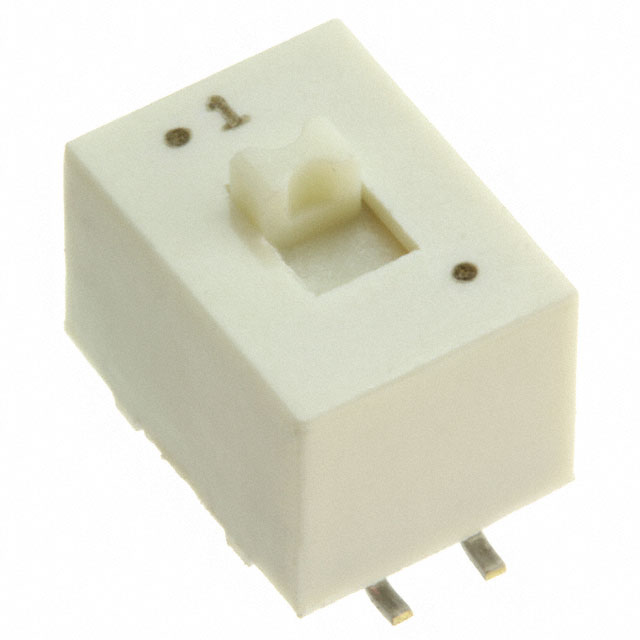

SLIDE SWITCH,STRAIGHT,SPDT,ON-OFF,NUMBER OF POSITIONS:1,SURFACE MOUNT TERMINAL

Search across all available documentation for this part.

Active

Grayhill Inc.

SLIDE SWITCH,STRAIGHT,SPDT,ON-OFF,NUMBER OF POSITIONS:1,SURFACE MOUNT TERMINAL

Technical Specifications

Parameters and characteristics commom to parts in this series

SLIDE SWITCH,STRAIGHT,SPDT,ON-OFF,NUMBER OF POSITIONS:1,SURFACE MOUNT TERMINAL

Part	Actuator Level	Pitch [x]	Pitch	Pitch [x]	Height Above Board	Height Above Board	Washable	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Mechanical Life	Termination Style	Number of Positions	Mounting Type	Electrical Life	Voltage Rating	Length	Length	Contact Material	Actuator Type	Contact Finish	Body Material
Grayhill Inc. 78HJ01GWRT	Raised	0.1 in	Full	2.54 mm	8.3 mm	0.327 in		SPDT	85 °C	-40 °C	2000 Cycles	Gull Wing	1	Surface Mount	2000 Steps	30 VDC	7.11 mm	0.28 "	Copper Alloy	Slide (Standard)	Gold	Thermoplastic
Grayhill Inc. 78HJ01GWT	Raised	0.1 in	Full	2.54 mm	8.3 mm	0.327 in		SPDT	85 °C	-40 °C	2000 Cycles	Gull Wing	1	Surface Mount	2000 Steps	30 VDC	7.11 mm	0.28 "	Copper Alloy	Slide (Standard)	Gold	Thermoplastic

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Dip Switch SPDT 1 Position Surface Mount Slide (Standard) Actuator 150mA 30VDC
