395-13-101-07-350000
ActiveMill-Max Manufacturing Corp.

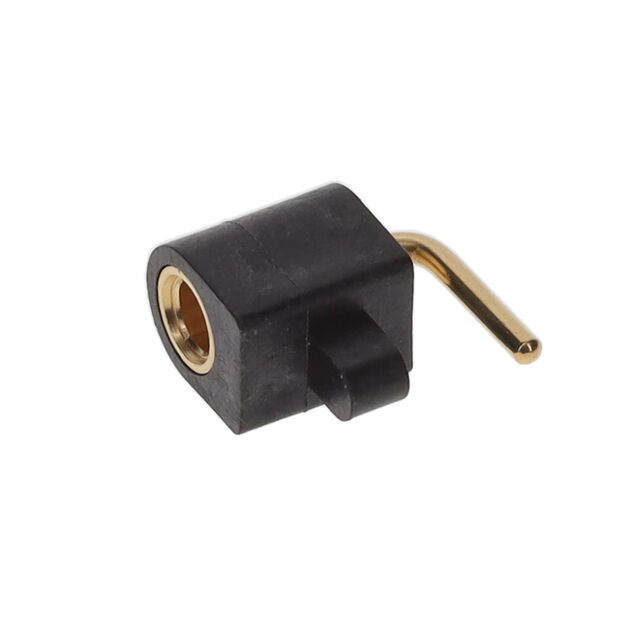

PC TEST POINT JACK BLACK
Deep-Dive with AI
Search across all available documentation for this part.
395-13-101-07-350000
ActiveMill-Max Manufacturing Corp.
PC TEST POINT JACK BLACK
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 395-13-101-07-350000 |
|---|---|
| Color | Black |
| Height [z] | 0.238 in |
| Height [z] | 6.05 mm |
| Hole Diameter [diameter] | 0.079 in |
| Hole Diameter [diameter] | 2 mm |
| Material - Body | Brass |
| Material - Insulation | Polycyclohexylenedimethylene Terephthalate (PCT) |
| Mounting Type | Through Hole, Right Angle |
| Plating | Gold |
| Type | PC Test Point Jack |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 23.82 | |
| 10 | $ 18.36 | |||
| 25 | $ 16.62 | |||
| 50 | $ 15.45 | |||
| 100 | $ 14.39 | |||
| 250 | $ 13.13 | |||
| 500 | $ 12.29 | |||
Description
General part information
395-13 Series
Black PC Test Point Jack Brass Gold Plating Through Hole, Right Angle Mounting Type
Documents
Technical documentation and resources
No documents available
