ANT1818B00AT1575S

Active

Pulse Electronics

RF ANT 1.6GHZ CER PATCH SOLDER

Search across all available documentation for this part.

Active

Pulse Electronics

RF ANT 1.6GHZ CER PATCH SOLDER

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

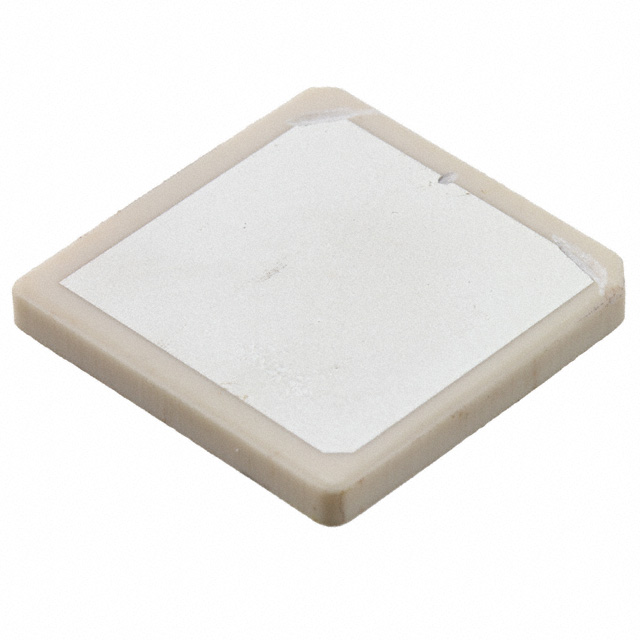

1.6GHz GPS Ceramic Patch RF Antenna 1.577GHz ~ 1.583GHz 2dBic Solder Surface Mount

Technical documentation and resources

Part	Return Loss	Frequency Group [Max]	Frequency Group [Min]	Frequency Group	Antenna Type	RF Family/Standard	Frequency (Center/Band)	Applications	Termination	Gain	Mounting Type	VSWR	Frequency Range [Max]	Frequency Range [Min]	Number of Bands	Height (Max)	Height (Max) [Max] [z]	Height (Max) [Max]	Height (Max) [Max]
Pulse Electronics ANT1818B00DT1516S	-26.781 dB, -26.08 dB	2 GHz	1 GHz	UHF	Ceramic Patch	Navigation	1.575 GHz, 1.602 GHz	GLONASS, GPS	Pin	2.65 dBi, 2.79 dBi	Adhesive	2	1.606 GHz	1.575 GHz	2	4 mm	0.157 in
Pulse Electronics ANT1818B00FTGNSSS	3 dB	2 GHz	1 GHz	UHF	Ceramic Patch	Navigation	1.5845 GHz	GNSS	Pin	-2 dBi	Adhesive		1.61 GHz	1.559 GHz	1	4 mm	0.157 in
Pulse Electronics ANT1818B00AT1575S	-10 dB	2 GHz	1 GHz	UHF	Ceramic Patch	Navigation	1.6 GHz	GPS	Solder	2 dBic	Surface Mount	2	1.583 GHz	1.577 GHz	1			2 mm	0.079 in
