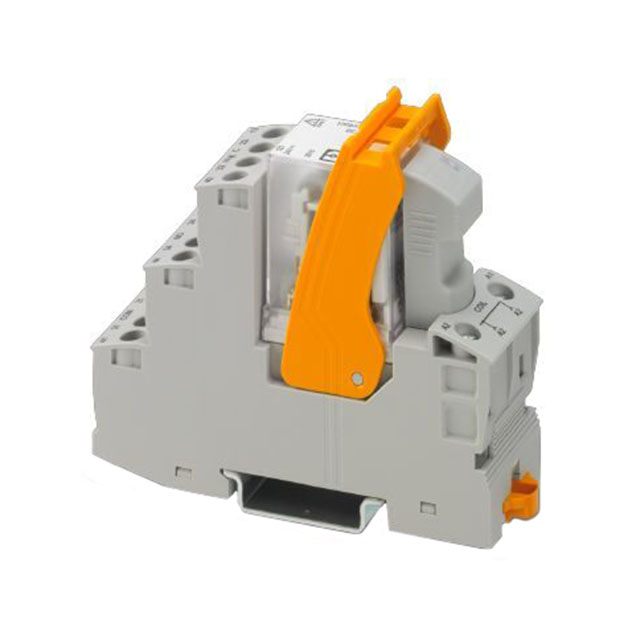

RELAY GEN PURPOSE 4PDT 6A 24V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2909845
ActivePhoenix Contact
RELAY GEN PURPOSE 4PDT 6A 24V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 2909845 | 29098 Series |
|---|---|---|
| Approval Agency | ATEX, UL, IECEx, EAC, cULus | CSA, ATEX, UL, IECEx, EAC, cULus |
| Coil Current | 42 mA | 6.5 - 42 mA |
| Coil Resistance | 571 Ohms | 1.33 - 571 kOhms |
| Coil Type | Non Latching | Non Latching |
| Coil Voltage | 24 VDC | 24 - 230 VAC |
| Contact Form | 4PDT (4 Form C) | 4PDT (4 Form C), SPST-NO (1 Form A) |
| Contact Material | Silver Nickel (AgNi) | Silver Nickel (AgNi), Silver Tin Oxide (AgSnO) |
| Contact Rating (Current) | 6 A | 5 - 6 A |
| Features | Socket Included, Diode, Lighted Indicator | Lighted Indicator, Varistor, Socket Included, Diode |
| Mounting Type | DIN Rail | DIN Rail |
| Operate Time | 13 ms | 8 - 15 ms |
| Operating Temperature [Max] | 60 °C | 50 - 70 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Relay Type | General Purpose | General Purpose |
| Release Time | 14 ms | 10 - 20 ms |
| Switching Voltage | 250 VAC, 250 VDC | 250 VAC |
| Termination Style | Screw Terminal | Screw Terminal |
29098 Series
RELAY GEN PURPOSE 4PDT 5A 230V
| Part | Relay Type | Approval Agency | Contact Form | Features | Contact Material | Coil Voltage | Termination Style | Operating Temperature [Min] | Operating Temperature [Max] | Coil Resistance | Coil Type | Switching Voltage | Release Time | Operate Time | Mounting Type | Contact Rating (Current) | Coil Current |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 2909847 | General Purpose | CSA | 4PDT (4 Form C) | Lighted Indicator, Socket Included, Varistor | Silver Nickel (AgNi) | 230 VAC | Screw Terminal | -40 °C | 50 °C | 35.39 kOhms | Non Latching | 250 VAC, 250 VDC | 20 ms | 15 ms | DIN Rail | 5 A | 6.5 mA |
Phoenix Contact 2909845 | General Purpose | ATEX, cULus, EAC, IECEx, UL | 4PDT (4 Form C) | Diode, Lighted Indicator, Socket Included | Silver Nickel (AgNi) | 24 VDC | Screw Terminal | -40 °C | 60 °C | 571 Ohms | Non Latching | 250 VAC, 250 VDC | 14 ms | 13 ms | DIN Rail | 6 A | 42 mA |
Phoenix Contact 2909885 | General Purpose | CSA | SPST-NO (1 Form A) | Diode, Lighted Indicator, Socket Included | Silver Tin Oxide (AgSnO) | 24 VDC | Screw Terminal | -40 °C | 70 °C | 1.33 kOhms | Non Latching | 250 VAC, 250 VDC | 10 ms | 8 ms | DIN Rail | 6 A | 18 mA |
Phoenix Contact 2909846 | General Purpose | CSA | 4PDT (4 Form C) | Lighted Indicator, Socket Included, Varistor | Silver Nickel (AgNi) | 120 VAC | Screw Terminal | -40 °C | 50 °C | 9.23 kOhms | Non Latching | 250 VAC, 250 VDC | 20 ms | 15 ms | DIN Rail | 5 A | 13 mA |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 32.67 | |
Description
General part information
29098 Series
General Purpose Relay 4PDT (4 Form C) 24VDC Coil DIN Rail
