RELAY GEN PURPOSE 4PDT 5A 230V

Search across all available documentation for this part.

Active

Phoenix Contact

RELAY GEN PURPOSE 4PDT 5A 230V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2909847	29098 Series

Approval Agency	CSA	CSA, ATEX, UL, IECEx, EAC, cULus
Coil Current	6.5 mA	6.5 - 42 mA
Coil Resistance	35.39 kOhms	1.33 - 571 kOhms
Coil Type	Non Latching	Non Latching
Coil Voltage	230 VAC	24 - 230 VAC
Contact Form	4PDT (4 Form C)	4PDT (4 Form C), SPST-NO (1 Form A)
Contact Material	Silver Nickel (AgNi)	Silver Nickel (AgNi), Silver Tin Oxide (AgSnO)
Contact Rating (Current)	5 A	5 - 6 A
Features	Lighted Indicator, Varistor, Socket Included	Lighted Indicator, Varistor, Socket Included, Diode
Mounting Type	DIN Rail	DIN Rail
Operate Time	15 ms	8 - 15 ms
Operating Temperature [Max]	50 °C	50 - 70 °C
Operating Temperature [Min]	-40 °C	-40 °C
Relay Type	General Purpose	General Purpose
Release Time	20 ms	10 - 20 ms
Switching Voltage	250 VAC, 250 VDC	250 VAC
Termination Style	Screw Terminal	Screw Terminal

RELAY GEN PURPOSE 4PDT 5A 230V

Part	Relay Type	Approval Agency	Contact Form	Features	Contact Material	Coil Voltage	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Coil Resistance	Coil Type	Switching Voltage	Release Time	Operate Time	Mounting Type	Contact Rating (Current)	Coil Current
Phoenix Contact 2909847	General Purpose	CSA	4PDT (4 Form C)	Lighted Indicator, Socket Included, Varistor	Silver Nickel (AgNi)	230 VAC	Screw Terminal	-40 °C	50 °C	35.39 kOhms	Non Latching	250 VAC, 250 VDC	20 ms	15 ms	DIN Rail	5 A	6.5 mA
Phoenix Contact 2909845	General Purpose	ATEX, cULus, EAC, IECEx, UL	4PDT (4 Form C)	Diode, Lighted Indicator, Socket Included	Silver Nickel (AgNi)	24 VDC	Screw Terminal	-40 °C	60 °C	571 Ohms	Non Latching	250 VAC, 250 VDC	14 ms	13 ms	DIN Rail	6 A	42 mA
Phoenix Contact 2909885	General Purpose	CSA	SPST-NO (1 Form A)	Diode, Lighted Indicator, Socket Included	Silver Tin Oxide (AgSnO)	24 VDC	Screw Terminal	-40 °C	70 °C	1.33 kOhms	Non Latching	250 VAC, 250 VDC	10 ms	8 ms	DIN Rail	6 A	18 mA
Phoenix Contact 2909846	General Purpose	CSA	4PDT (4 Form C)	Lighted Indicator, Socket Included, Varistor	Silver Nickel (AgNi)	120 VAC	Screw Terminal	-40 °C	50 °C	9.23 kOhms	Non Latching	250 VAC, 250 VDC	20 ms	15 ms	DIN Rail	5 A	13 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 33.79

General part information

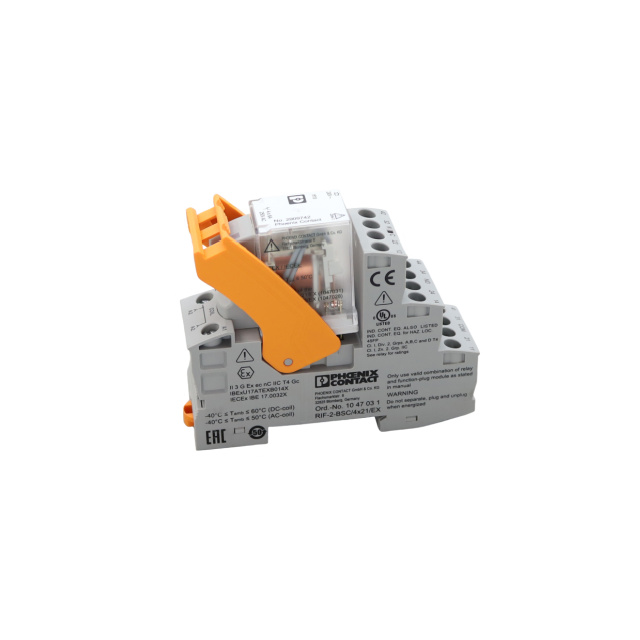

General Purpose Relay 4PDT (4 Form C) 230VAC Coil DIN Rail
