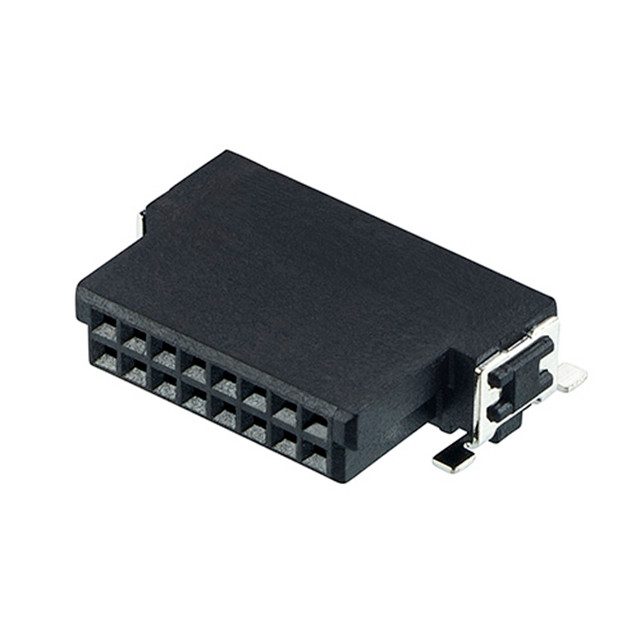

M55-6101642R

Active

Harwin Inc.

PCB RECEPTACLE, BOARD-TO-BOARD, 1.27 MM, 2 ROWS, 16 CONTACTS, SURFACE MOUNT RIGHT ANGLE

Search across all available documentation for this part.

Active

Harwin Inc.

PCB RECEPTACLE, BOARD-TO-BOARD, 1.27 MM, 2 ROWS, 16 CONTACTS, SURFACE MOUNT RIGHT ANGLE

Technical Specifications

Parameters and characteristics for this part

Specification	M55-6101642R

Applications	Industrial, General Purpose, Automotive
Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	1 µin
Contact Finish Thickness - Mating	0.025 µm
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Material	Phosphor Bronze
Contact Shape	Rectangular
Contact Type	Female Socket
Current Rating (Amps)	1.2 A
Fastening Type	Latch Holder
Features	Solder Retention, Board Guide
Insulation Color	Black
Insulation Height	3.7 mm
Insulation Height	0.146 "
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	16
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Termination	Solder
Voltage Rating	100 VAC

Part	Contact Type	Number of Positions Loaded	Voltage Rating	Row Spacing - Mating	Row Spacing - Mating	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Shape	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height	Insulation Height	Contact Finish - Post	Current Rating (Amps)	Connector Type	Fastening Type	Number of Positions	Termination	Insulation Color	Contact Material	Features	Mounting Type	Applications	Contact Finish - Mating	Material Flammability Rating	Insulation Material	Number of Rows	Number of Positions
Harwin Inc. M55-6101242R	Female Socket	All	100 VAC	0.05 in	1.27 mm	0.05 in	1.27 mm	1 µin	0.025 µm	Rectangular	2.54 µm	100 µin	-55 °C	125 °C	3.7 mm	0.146 "	Tin	1.2 A	Receptacle	Latch Holder	12	Solder	Black	Phosphor Bronze	Board Guide Solder Retention	Surface Mount Right Angle	Automotive General Purpose Industrial	Gold	UL94 V-0	Liquid Crystal Polymer (LCP)	2
Harwin Inc. M55-6101642R	Female Socket	All	100 VAC	0.05 in	1.27 mm	0.05 in	1.27 mm	1 µin	0.025 µm	Rectangular	2.54 µm	100 µin	-55 °C	125 °C	3.7 mm	0.146 "	Tin	1.2 A	Receptacle	Latch Holder		Solder	Black	Phosphor Bronze	Board Guide Solder Retention	Surface Mount Right Angle	Automotive General Purpose Industrial	Gold	UL94 V-0	Liquid Crystal Polymer (LCP)	2	16

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

16 Position Receptacle Connector 0.050" (1.27mm) Surface Mount, Right Angle Gold
