FF1000R17IE4DB2BOSA1

Active

Infineon Technologies

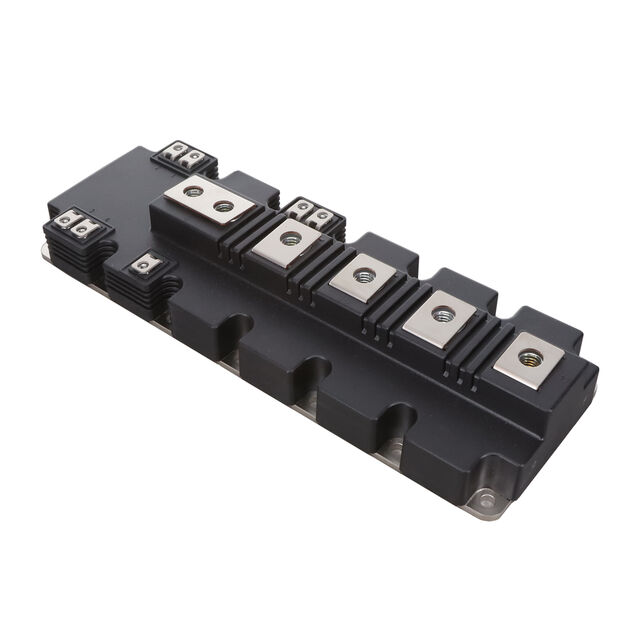

THE FF1000R17IE4D_B2 IS A 1700 V, 1000 A DUAL IGBT MODULE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FF1000R17IE4DB2BOSA1

Active

Infineon Technologies

THE FF1000R17IE4D_B2 IS A 1700 V, 1000 A DUAL IGBT MODULE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FF1000R17IE4DB2BOSA1

Configuration	2 Independent
Current - Collector Cutoff (Max) [Max]	5 mA
Input	Standard
Input Capacitance (Cies) @ Vce	81 nF
Mounting Type	Chassis Mount
NTC Thermistor	True
Package / Case	Module
Power - Max [Max]	6250 W
Supplier Device Package	Module
Vce(on) (Max) @ Vge, Ic	2.45 V
Voltage - Collector Emitter Breakdown (Max)	1700 V

FF1000 Series

Part	Vce(on) (Max) @ Vge, Ic	Power - Max [Max]	Current - Collector Cutoff (Max) [Max]	Configuration	Supplier Device Package	Mounting Type	Current - Collector (Ic) (Max) [Max]	Input	Input Capacitance (Cies) @ Vce	Voltage - Collector Emitter Breakdown (Max)	NTC Thermistor	Package / Case
Infineon Technologies FF1000R17IE4S4BOSA2	2.45 V	6250 W	5 mA	2 Independent	AG-PRIME3-1	Chassis Mount	1390 A	Standard	81 pF	1700 V		Module
Infineon Technologies FF1000R17IE4DB2BOSA1	2.45 V	6250 W	5 mA	2 Independent	Module	Chassis Mount		Standard	81 nF	1700 V		Module

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 707.81
		10	$ 683.12

Description

General part information

FF1000 Series

PrimePACK™ 31700 V, 1000 A half-bridge dualIGBT modulewith TRENCHSTOP™ IGBT4, Emitter Controlled 4 diode, NTC and fast switching chip especially developed forTraction applications.
