DC2025A-B

Active

Analog Devices

DEMONSTRATION BOARD, DAC ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

DC2025A-B

Active

Analog Devices

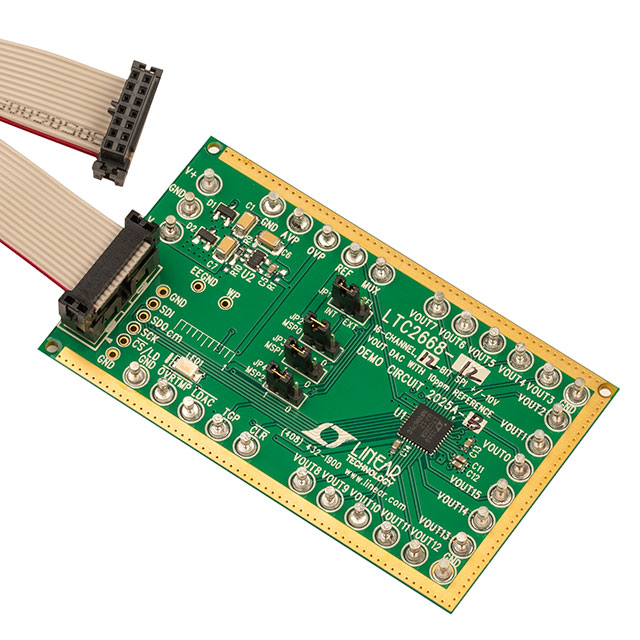

DEMONSTRATION BOARD, DAC ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DC2025A-B

Contents	Board(s)
DAC Type	Voltage
Data Interface	SPI, Serial
Number of Bits	12 bits
Number of DAC's	16
Settling Time	4.5 µs
Utilized IC / Part	LTC2668-12

LTC2668 Series

16-Channel 16-/12-Bit ±10V VOUTSoftSpan DACs with 10ppm/°C Max Reference

Part	Number of D/A Converters	Package / Case	Mounting Type	Data Interface	Number of Bits	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Settling Time	Output Type	Voltage - Supply, Analog [Min]	Voltage - Supply, Analog [Max]	Voltage - Supply, Digital [Min]	Voltage - Supply, Digital [Max]	Reference Type	INL/DNL (LSB)	Number of DAC's	Contents	DAC Type	Utilized IC / Part
Analog Devices LTC2668IUJ-16#TRPBF	16 D/A Converters	40-WFQFN Exposed Pad	Surface Mount	SPI	16	40-QFN (6x6)	85 °C	-40 °C	20.5 µs	Voltage - Buffered	-4.5 V	15.75 V	1.71 V	5.5 V	External Internal	0.2 LSB 2.2 LSB
Analog Devices DC2025A-B				Serial SPI	12 bits				4.5 µs								16	Board(s)	Voltage	LTC2668-12
Analog Devices LTC2668HUJ-12#TRPBF	16 D/A Converters	40-WFQFN Exposed Pad	Surface Mount	SPI	12 bits	40-QFN (6x6)	125 °C	-40 °C	15.5 µs	Voltage - Buffered	-4.5 V	15.75 V	1.71 V	5.5 V	External Internal	0.05 LSB 0.2 LSB
Analog Devices LTC2668IUJ-16#PBF	16 D/A Converters	40-WFQFN Exposed Pad	Surface Mount	SPI	16	40-QFN (6x6)	85 °C	-40 °C	20.5 µs	Voltage - Buffered	-4.5 V	15.75 V	1.71 V	5.5 V	External Internal	0.2 LSB 2.2 LSB
Analog Devices LTC2668IUJ-12#TRPBF	16 D/A Converters	40-WFQFN Exposed Pad	Surface Mount	SPI	12 bits	40-QFN (6x6)	85 °C	-40 °C	15.5 µs	Voltage - Buffered	-4.5 V	15.75 V	1.71 V	5.5 V	External Internal	0.05 LSB 0.2 LSB
Analog Devices LTC2668HUJ-16#TRPBF	16 D/A Converters	40-WFQFN Exposed Pad	Surface Mount	SPI	16	40-QFN (6x6)	125 °C	-40 °C	20.5 µs	Voltage - Buffered	-4.5 V	15.75 V	1.71 V	5.5 V	External Internal	0.2 LSB 2.2 LSB
Analog Devices LTC2668HUJ-16#PBF	16 D/A Converters	40-WFQFN Exposed Pad	Surface Mount	SPI	16	40-QFN (6x6)	125 °C	-40 °C	20.5 µs	Voltage - Buffered	-4.5 V	15.75 V	1.71 V	5.5 V	External Internal	0.2 LSB 2.2 LSB
Analog Devices LTC2668CUJ-12#TRPBF	16 D/A Converters	40-WFQFN Exposed Pad	Surface Mount	SPI	12 bits	40-QFN (6x6)	70 °C	0 °C	15.5 µs	Voltage - Buffered	-4.5 V	15.75 V	1.71 V	5.5 V	External Internal	0.05 LSB 0.2 LSB
Analog Devices LTC2668CUJ-16#TRPBF	16 D/A Converters	40-WFQFN Exposed Pad	Surface Mount	SPI	16	40-QFN (6x6)	70 °C	0 °C	20.5 µs	Voltage - Buffered	-4.5 V	15.75 V	1.71 V	5.5 V	External Internal	0.2 LSB 2.2 LSB
Analog Devices LTC2668IUJ-12#PBF	16 D/A Converters	40-WFQFN Exposed Pad	Surface Mount	SPI	12 bits	40-QFN (6x6)	85 °C	-40 °C	15.5 µs	Voltage - Buffered	-4.5 V	15.75 V	1.71 V	5.5 V	External Internal	0.05 LSB 0.2 LSB

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 117.98
Newark	Each	1	$ 122.70

Description

General part information

LTC2668 Series

The LTC2668 is a family of 16-channel, 16-/12-bit ±10V digital-to-analog converters with integrated precision references. They are guaranteed monotonic and have built-in rail-to-rail output buffers. These SoftSpan™DACs offer five output ranges up to ±10V. The range of each channel is independently programmable, or the part can be hardware-configured for operation in a fixed range.The integrated 2.5V reference is buffered separately to each channel; an external reference can be used for additional range options. The LTC2668 also includes A/B toggle capability via a dedicated pin or software toggle command.The SPI/Microwire-compatible 3-wire serial interface operates on logic levels as low as 1.71V at clock rates up to 50MHz.ApplicationsOptical NetworkingInstrumentationData AcquisitionAutomatic Test EquipmentProcess Control and Industrial Automation
