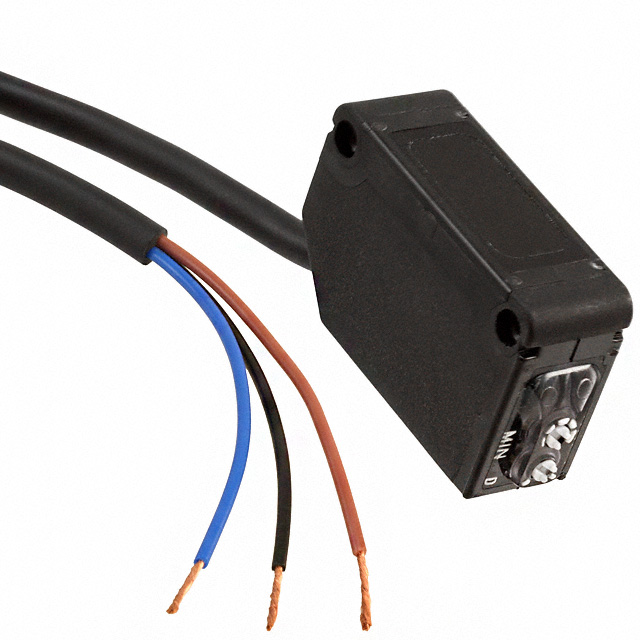

CX-422-P-J
ActivePanasonic Industrial Automation Sales
SENSOR REFLECTIVE 800MM PNP
Deep-Dive with AI
Search across all available documentation for this part.
CX-422-P-J
ActivePanasonic Industrial Automation Sales
SENSOR REFLECTIVE 800MM PNP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CX-422-P-J |
|---|---|
| Cable Length | 78.74 in |
| Cable Length | 2 m |
| Connection Method | Cable |
| Ingress Protection | IP67 |
| Light Source | 860 nm |
| Light Source | Infrared |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -25 °C |
| Output Configuration | PNP - Open Collector |
| Response Time | 1 ms |
| Sensing Distance | 800 mm |
| Sensing Distance | 31.496 " |
| Sensing Method | Reflective, Diffuse |
| Voltage - Supply [Max] | 24 V |
| Voltage - Supply [Min] | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 85.00 | |
| 10 | $ 77.27 | |||
Description
General part information
CX-422 Series
Reflective, Diffuse Optical Sensor 31.496" (800mm) PNP - Open Collector
Documents
Technical documentation and resources
No documents available
