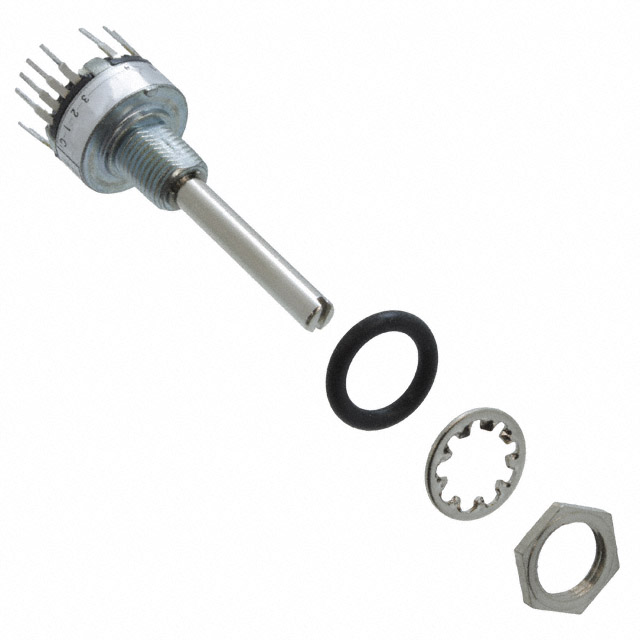

MRJE2604
ActiveTE Connectivity Raychem Cable Protection
SWITCH ROTARY 6POS 0.4VA 20V
Deep-Dive with AI
Search across all available documentation for this part.
MRJE2604
ActiveTE Connectivity Raychem Cable Protection
SWITCH ROTARY 6POS 0.4VA 20V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MRJE2604 |
|---|---|
| Actuator Length [x] | 19 mm |
| Actuator Type | Slotted, Round |
| Actuator Type [diameter] | 3.17 mm |
| Angle of Throw | 30 ° |
| Circuit per Deck [custom] | DP6T |
| Contact Finish | Gold |
| Contact Material | Nickel |
| Contact Timing | Non-Shorting |
| Current Rating (Amps) | 0.4 VA |
| Depth Behind Panel | 8.13 mm |
| Features | Epoxy Sealed Terminals |
| Index Stops | Fixed |
| Mounting Type | Through Hole, Panel Mount |
| Number of Decks [custom] | 1 |
| Number of Poles per Deck | 2 |
| Number of Positions | 6 |
| Termination Style | PC Pin |
| Voltage Rating - AC | 20 V |
| Voltage Rating - DC | 20 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 500 | $ 24.81 | |
Description
General part information
MRJE Series
Rotary Switch 6 Position DP6T 0.4VA (AC/DC) 20 VAC Panel Mount, Through Hole
Documents
Technical documentation and resources
No documents available
