8-1971776-3

Active

TE Connectivity AMP Connectors

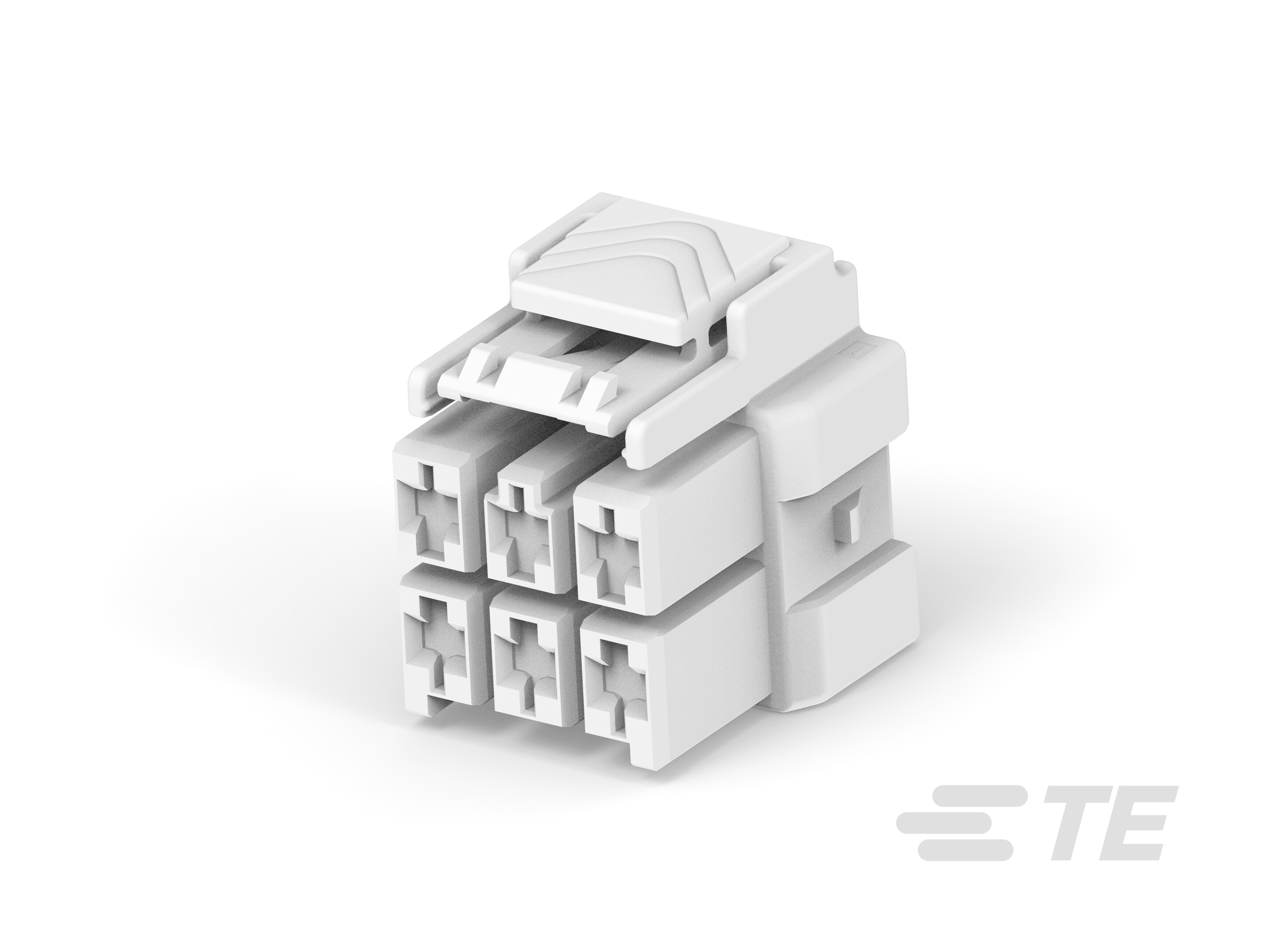

PTL 2X3 PLUG HSG HIGH TEMP KEY D NAT

8-1971776-3

Active

TE Connectivity AMP Connectors

PTL 2X3 PLUG HSG HIGH TEMP KEY D NAT

Description Specifications Series Pricing CAD Documents

Description

General part information

1971776 Series

6 Position, Plug, Housing, Crimp, Wire-to-Wire, UL 94V-0, 6 mm [.236 in] Centerline, 2 Row, 600 VAC, Wire & Cable, Power, Power Triple Lock

Technical Specifications

Parameters and characteristics for this part

Specification	8-1971776-3

Color	Natural
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Female Blade Socket
Fastening Type	Latch Holder
Insulation Material	Nylon, Polyamide (PA)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	6
Number of Rows	2
Operating Temperature (Max)	150 °C
Operating Temperature (Min)	-55 °C
Pitch	0.236 in
Row Spacing	0.319 in

1971776 Series

Part	Note	Pitch	Operating Temperature (Max)	Operating Temperature (Min)	Contact Type	Mounting Type	Row Spacing	Fastening Type	Contact Termination	Number of Positions	Color	Number of Rows	Insulation Material	Connector Type
TE Connectivity AMP Connectors 7-1971776-3	Contacts Not Included	0.236 in	150 °C	-55 °C	Female Blade Socket	Free Hanging (In-Line)	0.319 in	Latch Holder	Crimp	6	Black	2	Nylon Polyamide (PA)	Plug
TE Connectivity AMP Connectors 6-1971776-3	Contacts Not Included	0.236 in	150 °C	-55 °C	Female Blade Socket	Free Hanging (In-Line)	0.319 in	Latch Holder	Crimp	6	Red	2	Nylon Polyamide (PA)	Plug
TE Connectivity AMP Connectors 1-1971776-6	Contacts Not Included	0.236 in	150 °C	-55 °C	Female Blade Socket	Free Hanging (In-Line)	0.319 in	Latch Holder	Crimp	12	Natural	2	Glass Filled Polybutylene Terephthalate (PBT)	Plug
TE Connectivity AMP Connectors 4-1971776-3	Contacts Not Included	0.236 in	150 °C	-55 °C	Female Blade Socket	Free Hanging (In-Line)	0.319 in	Latch Holder	Crimp	6	Yellow	2	Glass Filled Polybutylene Terephthalate (PBT)	Plug

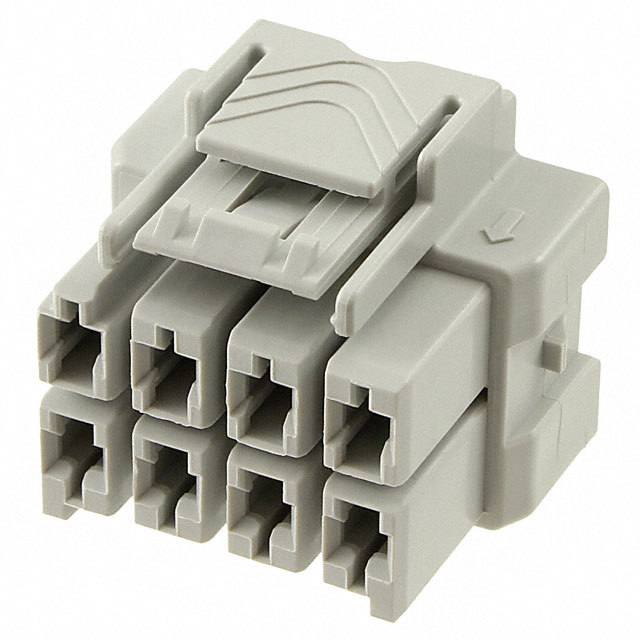

TE Connectivity AMP Connectors 5-1971776-4	Contacts Not Included	0.236 in	150 °C	-55 °C	Female Blade Socket	Free Hanging (In-Line)	0.319 in	Latch Holder	Crimp	8	Gray	2	Nylon Polyamide (PA)	Plug
TE Connectivity AMP Connectors 1-1971776-5	Contacts Not Included	0.236 in	150 °C	-55 °C	Female Blade Socket	Free Hanging (In-Line)	0.319 in	Latch Holder	Crimp	10	Natural	2	Glass Filled Polybutylene Terephthalate (PBT)	Plug
TE Connectivity AMP Connectors 2-1971776-3	Contacts Not Included	0.236 in	150 °C	-55 °C	Female Blade Socket	Free Hanging (In-Line)	0.319 in	Latch Holder	Crimp	6	Purple	2	Glass Filled Polybutylene Terephthalate (PBT)	Plug
TE Connectivity AMP Connectors 3-1971776-3	Contacts Not Included	0.236 in	150 °C	-55 °C	Female Blade Socket	Free Hanging (In-Line)	0.319 in	Latch Holder	Crimp	6	Blue	2	Glass Filled Polybutylene Terephthalate (PBT)	Plug
TE Connectivity AMP Connectors 8-1971776-3	Contacts Not Included	0.236 in	150 °C	-55 °C	Female Blade Socket	Free Hanging (In-Line)	0.319 in	Latch Holder	Crimp	6	Natural	2	Nylon Polyamide (PA)	Plug
TE Connectivity AMP Connectors 4-1971776-5	Contacts Not Included	0.236 in	150 °C	-55 °C	Female Blade Socket	Free Hanging (In-Line)	0.319 in	Latch Holder	Crimp	10	Yellow	2	Glass Filled Polybutylene Terephthalate (PBT)	Plug
