74LV244PW-Q100J
ActiveNexperia USA Inc.

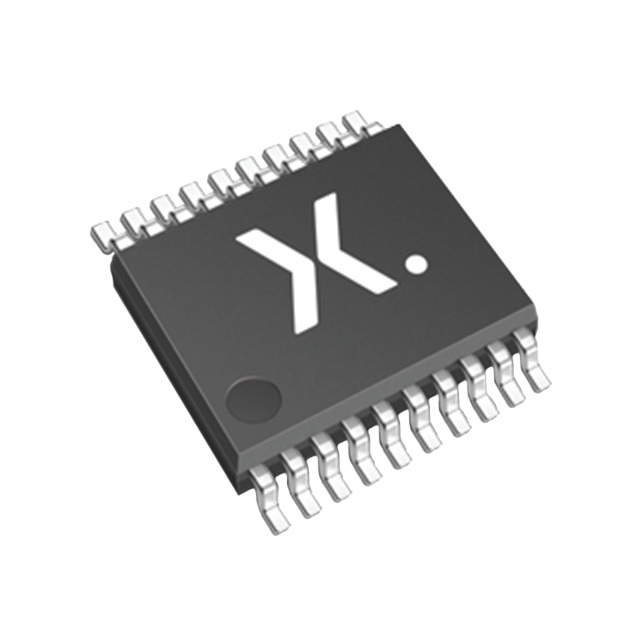

IC BUF NON-INVERT 5.5V 20TSSOP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
74LV244PW-Q100J
ActiveNexperia USA Inc.
IC BUF NON-INVERT 5.5V 20TSSOP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 74LV244PW-Q100J | 74LV244 Series |
|---|---|---|
| Current - Output High, Low [custom] | 16 mA | 16 mA |
| Current - Output High, Low [custom] | 16 mA | 16 mA |
| Grade | Automotive | Automotive |
| Logic Type | Buffer, Non-Inverting | Buffer, Non-Inverting |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Bits per Element | 4 | 4 |
| Number of Elements [custom] | 2 | 2 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Output Type | 3-State | 3-State |
| Package / Case | 0.173 in | 0.173 - 7.5 in |
| Package / Case | 4.4 mm | 4.4 mm |
| Package / Case | 20-TSSOP | 20-TSSOP, 20-SOIC, 20-SSOP |
| Qualification | AEC-Q100 | AEC-Q100 |
| Supplier Device Package | 20-TSSOP | 20-TSSOP, 20-SO, 20-SSOP |
| Voltage - Supply [Max] | 5.5 V | 5.5 V |
| Voltage - Supply [Min] | 1 V | 1 - 2 V |
