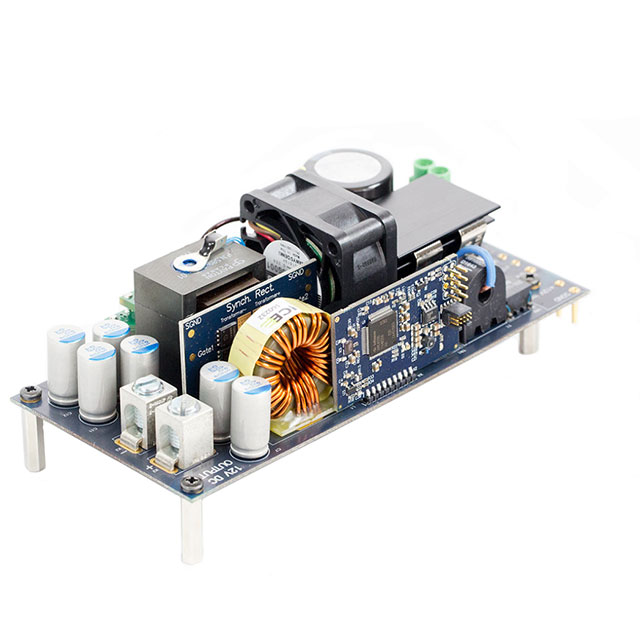

EVAL800WZVSFBCFD7TOBO1
UnknownTHIS 800W EVALUATION BOARD IS INTENDED TO BE A FORM, FIT AND FUNCTION TESTPLATFORM FOR SERVER APPLICATIONS TO SHOW OPERATION OF THE 600V COOLMOS C7, 650V SIC DIODE , OPTIMOS 40V, QUASI RESONAT FLYBACK (QR) AND XMC 1400/4200 CONTROLLER.THE EVALUATION BOARD IS DESIGNED AROUND THE INFINEON 600V COOLMOS 4-PIN DEVICE AND THE COST EFFECTIVE OPTIMOS 40V TECHNOLOGY TO SHOW SWITCHING PERFORMANCE AND POWER DENSITY DESIGN .
Deep-Dive with AI
Search across all available documentation for this part.
EVAL800WZVSFBCFD7TOBO1
UnknownTHIS 800W EVALUATION BOARD IS INTENDED TO BE A FORM, FIT AND FUNCTION TESTPLATFORM FOR SERVER APPLICATIONS TO SHOW OPERATION OF THE 600V COOLMOS C7, 650V SIC DIODE , OPTIMOS 40V, QUASI RESONAT FLYBACK (QR) AND XMC 1400/4200 CONTROLLER.THE EVALUATION BOARD IS DESIGNED AROUND THE INFINEON 600V COOLMOS 4-PIN DEVICE AND THE COST EFFECTIVE OPTIMOS 40V TECHNOLOGY TO SHOW SWITCHING PERFORMANCE AND POWER DENSITY DESIGN .
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | EVAL800WZVSFBCFD7TOBO1 |
|---|---|
| Contents | Board(s) |
| Current - Output | 67 A |
| Frequency - Switching | 100 kHz |
| Main Purpose | DC/DC, Step Down |
| Outputs and Type | 1 Isolated Output |
| Power - Output | 800 W |
| Regulator Topology | Buck |
| Utilized IC / Part | XMC4200, ICE3RBR4765JZ |
| Voltage - Input [Max] | 410 V |
| Voltage - Input [Min] | 350 V |
| Voltage - Output | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
EVAL800 Series
The EVAL_800W_ZVS_FB_CFD7 is a high performance example with a complete Infineon solution. The board includes high voltage and low voltage power MOSFETs, controllers and drivers, demonstrating a very effective way to design the high voltage DC-DC stage of a server or industrial SMPS, fulfilling the highest standard of efficiency and reliability. The overall best-in-class performance is achieved because of a mix of proper control techniques and best-in-class power device selection. Key Infineon products used to achieve this performance level include:600V CoolMOS™ CFD7superjunction (SJ) MOSFET (IPA60R280CFD7), advancedEiceDRIVER™ 2EDNdual-channel gate driver (2EDN7524F),OptiMOS™ 5 80Vsynchronous rectification MOSFET(BSC026N08NS5),XMC™ microcontroller(XMC4200-F64K256 BA)andCoolSET™bias converter flyback controller with switch (ICE3RBR4765JZ).
