R125703000W

Active

Radiall USA, Inc.

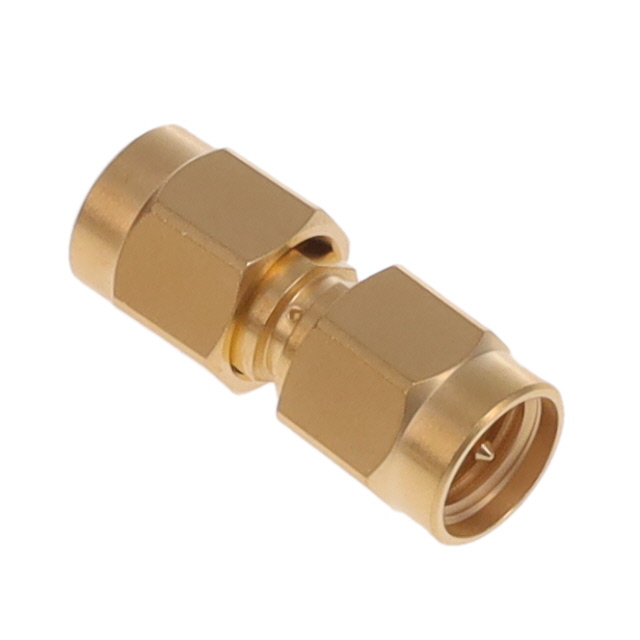

SMA / MALE-MALE ADAPTER

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SMA / MALE-MALE ADAPTER

Technical Specifications

Parameters and characteristics for this part

Specification	R125703000W

Adapter Series	SMA to SMA
Adapter Type	Plug to Plug
Body Finish	Gold
Body Material	Stainless Steel
Center Contact Material	Brass
Center Contact Plating	Gold
Center Gender	Male to Male
Conversion Type	Same Series
Convert From (Adapter End)	SMA Plug, Male Pin
Convert To (Adapter End)	SMA Plug, Male Pin
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	Straight

Part	Body Material	Operating Temperature [Min]	Operating Temperature [Max]	Frequency - Max [Max]	Body Finish	Conversion Type	Mating Cycles	Convert To (Adapter End)	Center Contact Material	Dielectric Material	Adapter Series	Center Gender	Mounting Type	Style	Adapter Type	Impedance	Convert From (Adapter End)	Center Contact Plating
Radiall USA, Inc. R125705000W	Stainless Steel	-65 ░C	165 °C	18 GHz	Gold	Same Series	500	Female Socket SMA Jack	Beryllium Copper	Polytetrafluoroethylene (PTFE)	SMA to SMA	Female to Female	Free Hanging (In-Line)	Straight	Jack to Jack	50 Ohms	Female Socket SMA Jack	Gold
Radiall USA, Inc. R125703000	Stainless Steel	-65 ░C	165 °C	18 GHz	Gold	Same Series	500	Male Pin SMA Plug	Brass	Polytetrafluoroethylene (PTFE)	SMA to SMA	Male to Male	Free Hanging (In-Line)	Straight	Plug to Plug	50 Ohms	SMA Plug Male Pin	Gold
Radiall USA, Inc. R125705001	Stainless Steel	-65 ░C	165 °C	18 GHz		Same Series	500	Female Socket SMA Jack	Beryllium Copper	Polytetrafluoroethylene (PTFE)	SMA to SMA	Female to Female	Free Hanging (In-Line)	Straight	Jack to Jack	50 Ohms	Female Socket SMA Jack	Gold
Radiall USA, Inc. R125703000W	Stainless Steel	-65 ░C	165 °C	18 GHz	Gold	Same Series	500	Male Pin SMA Plug	Brass	Polytetrafluoroethylene (PTFE)	SMA to SMA	Male to Male	Free Hanging (In-Line)	Straight	Plug to Plug	50 Ohms	SMA Plug Male Pin	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector SMA Plug, Male Pin To SMA Plug, Male Pin 50 Ohms
