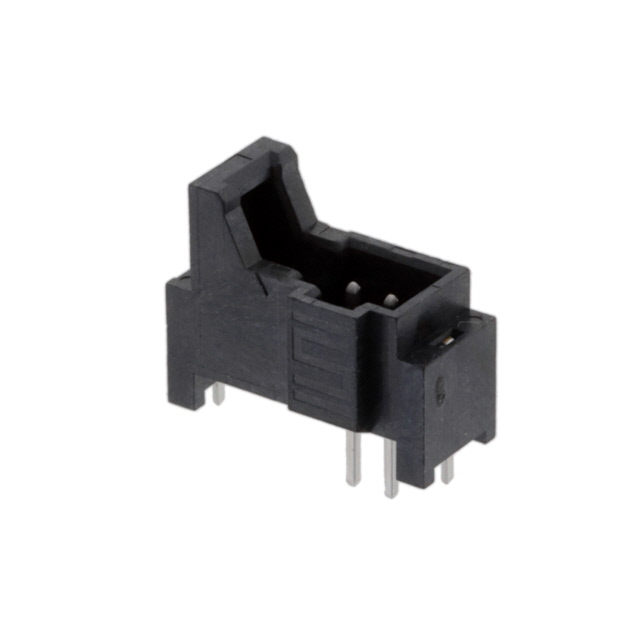

T2I-02-VT-T-S-TH
ActiveSamtec Inc.
2.00 MM DISCRETE WIRE IDC TERMIN
Deep-Dive with AI
Search across all available documentation for this part.
T2I-02-VT-T-S-TH
ActiveSamtec Inc.
2.00 MM DISCRETE WIRE IDC TERMIN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | T2I-02-VT-T-S-TH |
|---|---|
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Length - Mating | 0.19 " |
| Contact Length - Mating | 4.83 mm |
| Contact Length - Post | 2.92 mm |
| Contact Length - Post | 0.115 in |
| Contact Material | Phosphor Bronze |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Fastening Type | Latch Holder |
| Features | Board Guide, Keying Slot |
| Insulation Color | Black |
| Insulation Height | 0.315 in |
| Insulation Height | 8 mm |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Mounting Type | Through Hole |
| Number of Positions | 2 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating [x] | 0.079 in |
| Pitch - Mating [x] | 2 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 3.35 | |
| 50 | $ 2.73 | |||
| 100 | $ 2.32 | |||
| 500 | $ 2.06 | |||
| 1000 | $ 1.93 | |||
Description
General part information
T2I-02 Series
Connector Header Through Hole 2 position 0.079" (2.00mm)
