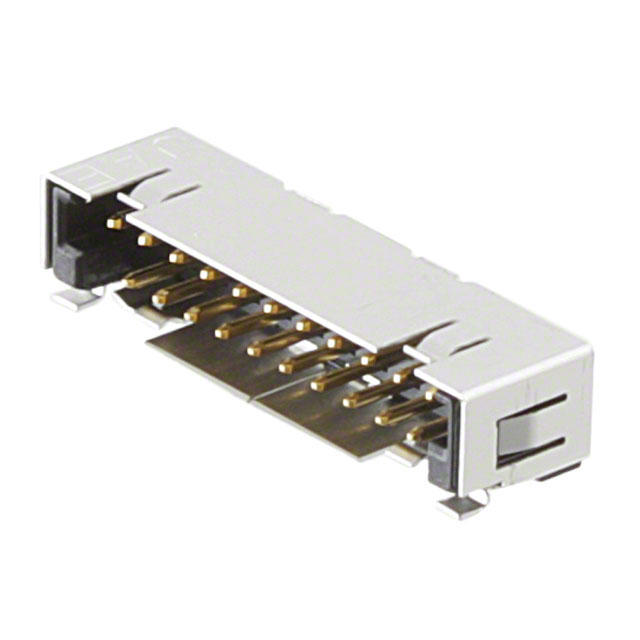

FI-WE21P-HFE

Active

JAE Electronics

CONN HEADER SMD R/A 21POS 1.25MM

Search across all available documentation for this part.

Active

JAE Electronics

CONN HEADER SMD R/A 21POS 1.25MM

Technical Specifications

Parameters and characteristics for this part

Specification	FI-WE21P-HFE

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin or Tin-Alloy
Contact Length - Mating [custom]	2.4 mm
Contact Length - Mating [custom]	0.094 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	1 A
Fastening Type	Friction Lock
Features	Solder Retention, Shielded
Insulation Color	Black
Insulation Height	3.7 mm
Insulation Height	0.146 "
Insulation Material	Polyphenylene Sulfide (PPS), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	21
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Pitch - Mating	1.25 mm
Pitch - Mating	0.049 in
Row Spacing - Mating [x]	0.055 in
Row Spacing - Mating [x]	1.4 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	200 V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Number of Rows	Features	Current Rating (Amps)	Contact Finish - Mating	Mounting Type	Termination	Pitch - Mating	Pitch - Mating	Voltage Rating	Insulation Color	Shrouding	Number of Positions Loaded	Contact Finish - Post	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Connector Type	Style	Insulation Height	Insulation Height	Insulation Material	Material Flammability Rating	Contact Material	Contact Type	Number of Positions	Fastening Type	Contact Length - Mating [custom]	Contact Length - Mating [custom]
JAE Electronics FI-WE21P-HFE	-40 °C	80 C	Square	2	Shielded Solder Retention	1 A	Gold	Surface Mount Right Angle	Solder	1.25 mm	0.049 in	200 V	Black	Shrouded - 4 Wall	All	Tin or Tin-Alloy	0.055 in	1.4 mm	Receptacle	Board to Cable/Wire	3.7 mm	0.146 "	Polyphenylene Sulfide (PPS) Glass Filled	UL94 V-0	Copper Alloy	Male Pin	21	Friction Lock	2.4 mm	0.094 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Surface Mount, Right Angle 21 position 0.049" (1.25mm)
