770743-1

Active

TE Connectivity AMP Connectors

CONN HEADER VERT 10POS 4.14MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN HEADER VERT 10POS 4.14MM

Technical Specifications

Parameters and characteristics for this part

Specification	770743-1

Applications	General Purpose
Connector Type	Header
Contact Finish - Mating	Tin-Lead
Contact Finish - Post	Tin-Lead
Contact Finish Thickness - Mating	150 Áin
Contact Finish Thickness - Mating	3.81 Ám
Contact Finish Thickness - Post	150 Áin
Contact Finish Thickness - Post	3.81 Ám
Contact Length - Post	4.45 mm
Contact Length - Post	0.175 in
Contact Material	Brass
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Locking Ramp
Insulation Color	White
Insulation Height	13.5 mm
Insulation Height	0.531 in
Insulation Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-20 C
Pitch - Mating	4.14 mm
Pitch - Mating	0.163 in
Row Spacing - Mating	4.14 mm
Row Spacing - Mating	0.163 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	600 VAC

CONN HEADER VERT 10POS 4.14MM

Part	Material Flammability Rating	Number of Positions Loaded	Insulation Height	Insulation Height	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Pitch - Mating	Pitch - Mating	Contact Shape	Voltage Rating	Contact Material	Row Spacing - Mating	Row Spacing - Mating	Insulation Color	Insulation Material	Termination	Current Rating (Amps)	Mounting Type	Contact Finish - Mating	Number of Rows	Style	Connector Type	Fastening Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post	Shrouding	Applications	Number of Positions	Contact Type	Contact Length - Post	Contact Length - Post
TE Connectivity AMP Connectors 770743-1	UL94 V-0	All	13.5 mm	0.531 in	150 Áin	3.81 Ám	4.14 mm	0.163 in	Circular	600 VAC	Brass	4.14 mm	0.163 in	White	Nylon, Polyamide (PA)	Solder	Varies by Wire Gauge	Through Hole	Tin-Lead	2	Board to Cable/Wire	Header	Locking Ramp	85 °C	-20 C	150 Áin	3.81 Ám	Tin-Lead	Shrouded - 4 Wall	General Purpose	10	Male Pin	4.45 mm	0.175 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

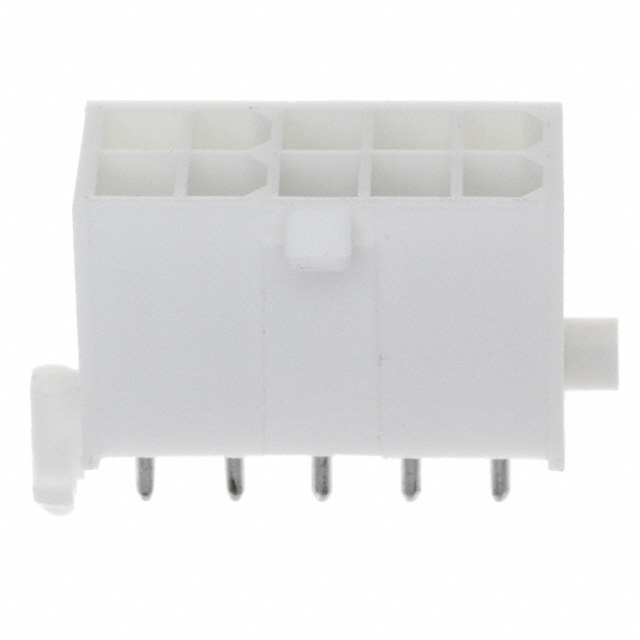

Connector Header Through Hole 10 position 0.163" (4.14mm)
