QH19057YC

Active

APEM

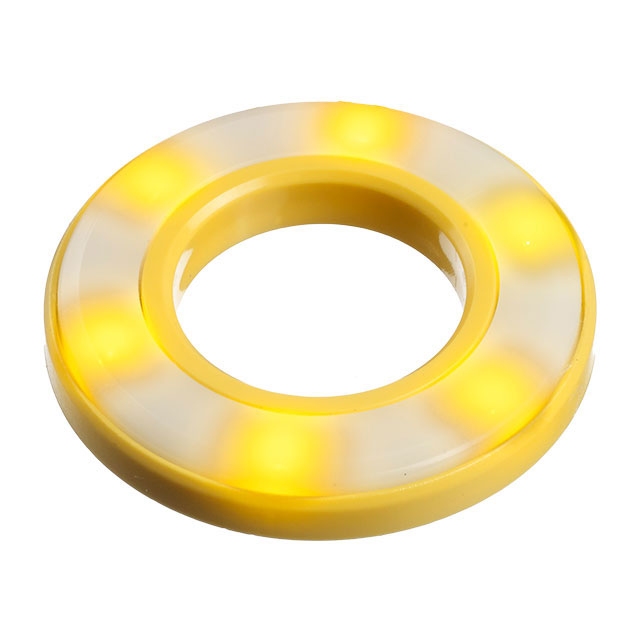

LED PANEL INDICATOR, YELLOW, 19MM, 24VDC ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

APEM

LED PANEL INDICATOR, YELLOW, 19MM, 24VDC ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	QH19057YC

Current [Max]	20 mA
Current [Min]	4.2 mA
Ingress Protection	IP67
Lamp Color	Yellow
Lens Color	White
Lens Size [diameter]	38.5 mm
Lens Style	Ring with Domed Top
Lens Transparency	Diffused
Panel Cutout Dimensions [custom]	19 mm
Panel Cutout Dimensions [custom]	0.748 in
Panel Cutout Shape	Round
Ratings	DC
Termination Style	Wire Leads - 7.87" (200.00mm)
Type	LED
Voltage [Max]	26.4 V
Voltage [Min]	12 V

Part	Lens Transparency	Lens Size [diameter]	Panel Cutout Shape	Type	Ingress Protection	Lens Style	Ratings	Lamp Color	Lens Color	Current [Max]	Current [Min]	Voltage [Min]	Voltage [Max]	Panel Cutout Dimensions [custom]	Panel Cutout Dimensions [custom]	Termination Style
APEM QH19057YC	Diffused	38.5 mm	Round	LED	IP67	Ring with Domed Top	DC	Yellow	White	20 mA	4.2 mA	12 V	26.4 V	19 mm	0.748 in	Wire Leads - 7.87" (200.00mm)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Panel Indicator Yellow Diffused 12V ~ 26.4V 4.2 ~ 20mA Wire Leads - 7.87" (200.00mm)
