SR4L049-EVB-1

Active

Antenova

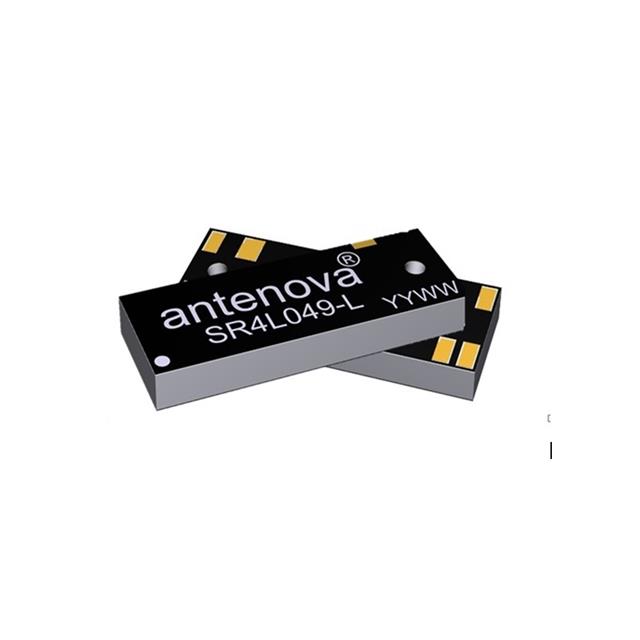

INTEGRA LEFT EVALUATION BOARD

Search across all available documentation for this part.

Active

Antenova

INTEGRA LEFT EVALUATION BOARD

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 68.75

General part information

- SR4L049 Antenna 791MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.4GHz, 2.5GHz ~ 2.7GHz Evaluation Board

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	SR4L049-EVB-1	SR4L049 Series

Antenna Type	-	PCB Trace
Applications	-	4G, EDGE, DCS, GPRS, CDMA, IMT, 3G, GSM, HSPA, LTE, UMTS, PCS, WCDMA
For Use With/Related Products	SR4L049	SR4L049
Frequency (Center/Band)	-	1.94 - 875.5 GHz
Frequency [Max]	2.7 GHz, 2.17 GHz, 2.4 GHz, 960 MHz	2.17 - 960 GHz
Frequency [Min]	2.5 GHz, 791 MHz, 2.3 GHz, 1.71 GHz	1.71 - 791 GHz
Frequency Group	-	Wide Band
Gain	-	1.9 - 3.5 dBi
Height (Max)	-	0.13 in
Height (Max)	-	3.3 mm
Mounting Type	-	Surface Mount
Number of Bands	-	4
Return Loss	-	-9.7 - -4.5 dB
RF Family/Standard	-	Cellular
Supplied Contents	Board(s)	Board(s)
Termination	-	Solder
Type	Antenna	Antenna
VSWR	-	1.9 - 4.1

INTEGRA LEFT EVALUATION BOARD

Part	For Use With/Related Products	Type	Frequency [Max]	Frequency [Min]	Supplied Contents	Applications	Mounting Type	RF Family/Standard	VSWR	Termination	Height (Max) [Max] [z]	Height (Max)	Gain	Return Loss	Antenna Type	Number of Bands	Frequency (Center/Band)	Frequency Group
Antenova SR4L049-EVB-1	SR4L049	Antenna	2.17 GHz, 2.4 GHz, 2.7 GHz, 960 MHz	1.71 GHz, 2.3 GHz, 2.5 GHz, 791 MHz	Board(s)
Antenova SR4L049-R						3G, 4G, CDMA, DCS, EDGE, GPRS, GSM, HSPA, IMT, LTE, PCS, UMTS, WCDMA	Surface Mount	Cellular	1.9, 2.3, 3.6, 4.1	Solder	0.13 in	3.3 mm	1.9 dBi, 3 dBi, 3.3 dBi, 3.5 dBi	-9.7 dB, -7.8 dB, -5 dB, -4.5 dB	PCB Trace	4	1.94 GHz, 2.35 GHz, 2.595 GHz, 875.5 MHz	Wide Band
Antenova SR4L049-L						3G, 4G, CDMA, DCS, EDGE, GPRS, GSM, HSPA, IMT, LTE, PCS, UMTS, WCDMA	Surface Mount	Cellular	1.9, 2.3, 3.6, 4.1	Solder	0.13 in	3.3 mm	1.9 dBi, 3 dBi, 3.3 dBi, 3.5 dBi	-9.7 dB, -7.8 dB, -5 dB, -4.5 dB	PCB Trace	4	1.94 GHz, 2.35 GHz, 2.595 GHz, 875.5 MHz	Wide Band
