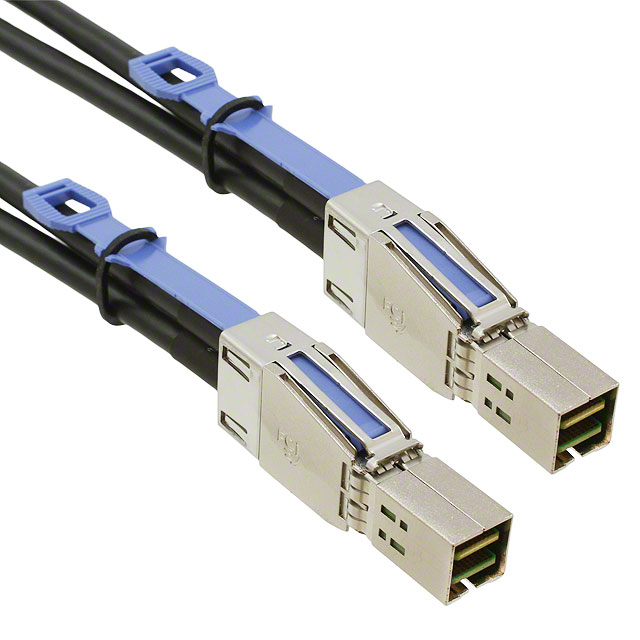

10112041-2005LF

Active

Amphenol ICC (FCI)

MINI-SAS HD EXT ASY 4X4 6G 1 MET

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

10112041-2005LF

Active

Amphenol ICC (FCI)

MINI-SAS HD EXT ASY 4X4 6G 1 MET

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	10112041-2005LF

Cable Connectors	miniSAS HD 4x
Cable Type	Round
Color	Black
Connector Type	Plug to Plug
Fastening Type	Push-Pull, Latch Lock
Frequency - Max [Max]	6 Gbps
Gender	Male to Male
Length [x]	1.64 ft
Length [x]	500 mm
Number of Positions	36
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Shielding	Shielded
Wire Gauge	30 AWG

10112041 Series

Part	Number of Positions	Shielding	Wire Gauge	Length [x]	Length [x]	Color	Gender	Frequency - Max [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Fastening Type	Cable Connectors	Cable Type	Features	Usage	Length	Length
Amphenol ICC (FCI) 10112041-3030LF	36	Shielded	28 AWG	9.84 ft	3 m	Black	Male to Male	6 Gbps	-40 °C	80 C	Plug to Plug	Latch Lock Push-Pull	miniSAS HD 4x	Round
Amphenol ICC (FCI) 10112041-2005HLF	36	Shielded	30 AWG	1.64 ft	500 mm	Black	Male to Male	6 Gbps	-40 °C	80 C	Plug to Plug	Latch Lock Push-Pull	miniSAS HD 4x	Round
Amphenol ICC (FCI) 10112041-2010LF	36	Shielded	30 AWG	3.28 ft	1 m	Black	Male to Male	6 Gbps	-40 °C	80 C	Plug to Plug	Latch Lock Push-Pull	miniSAS HD 4x	Round	Passive Pull Tab	External
Amphenol ICC (FCI) 10112041-4070LF	36	Shielded	26 AWG	22.97 '	7 m	Black	Male to Male	6 Gbps	-40 °C	80 C	Plug to Plug	Latch Lock Push-Pull	miniSAS HD 4x	Round	Passive Pull Tab	External
Amphenol ICC (FCI) 10112041-2020LF	36	Shielded	30 AWG	6.56 ft	2 m	Black	Male to Male	6 Gbps	-40 °C	80 C	Plug to Plug	Latch Lock Push-Pull	miniSAS HD 4x	Round	Passive Pull Tab	External
Amphenol ICC (FCI) 10112041-5050LF	36	Shielded	24 AWG			Black	Male to Male	6 Gbps	-40 °C	80 C	Plug to Plug	Latch Lock Push-Pull	miniSAS HD 4x	Round
Amphenol ICC (FCI) 10112041-3030HLF	36	Shielded	28 AWG	9.84 ft	3 m	Black	Male to Male	6 Gbps	-40 °C	80 C	Plug to Plug	Latch Lock Push-Pull	miniSAS HD 4x	Round
Amphenol ICC (FCI) 10112041-3060LF	36	Shielded	28 AWG			Black	Male to Male	6 Gbps	-40 °C	80 C	Plug to Plug	Latch Lock Push-Pull	miniSAS HD 4x	Round			19.69 ft	6 m
Amphenol ICC (FCI) 10112041-5030LF	36	Shielded	24 AWG	9.84 ft	3 m	Black	Male to Male	6 Gbps	-40 °C	80 C	Plug to Plug	Latch Lock Push-Pull	miniSAS HD 4x	Round
Amphenol ICC (FCI) 10112041-2005LF	36	Shielded	30 AWG	1.64 ft	500 mm	Black	Male to Male	6 Gbps	-40 °C	80 C	Plug to Plug	Latch Lock Push-Pull	miniSAS HD 4x	Round

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

10112041 Series

36 Position miniSAS HD 4x Plug to Plug 1.64' (500.00mm) Black Shielded
