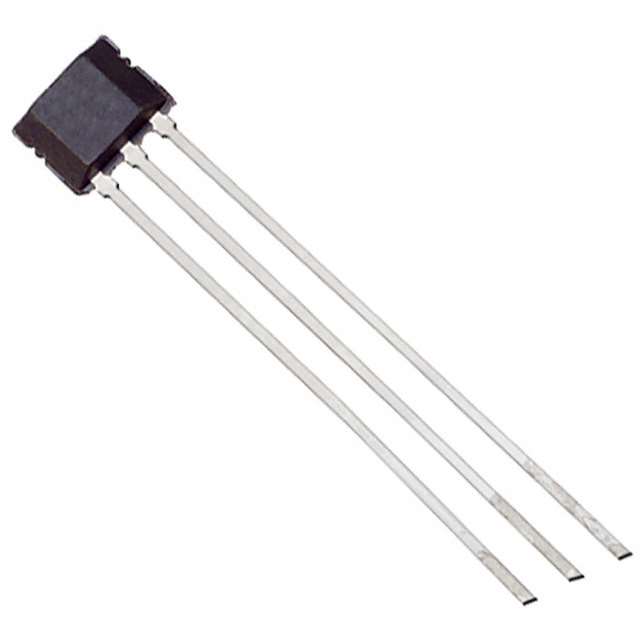

TLE49611LHALA1

Active

Infineon Technologies

XENSIV™ - TLE4961-1L HALL LATCH FOR ACCURATE AUTOMOTIVE APPLICATION THAT REQUIRE SUPERIOR SUPPLY VOLTAGE CAPABILITY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN

TLE49611LHALA1

Active

Infineon Technologies

XENSIV™ - TLE4961-1L HALL LATCH FOR ACCURATE AUTOMOTIVE APPLICATION THAT REQUIRE SUPERIOR SUPPLY VOLTAGE CAPABILITY

Deep-Dive with AI

DocumentsTechnical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TLE49611LHALA1

Current - Output (Max) [Max]	25 mA
Current - Supply (Max) [Max]	2.5 mA
Features	Temperature Compensated
Function	Latch
Grade	Automotive
Mounting Type	Through Hole
Output Type	Open Drain
Package / Case	SSO-3-02, 3-SSIP
Polarization	South Pole
Qualification	AEC-Q100
Sensing Range [Max]	3.5 mT
Sensing Range [Min]	-3.5 mT
Supplier Device Package	PG-SSO-3-2
Technology	Hall Effect
Test Condition	25 °C
Voltage - Supply [Max]	32 VDC
Voltage - Supply [Min]	3 V

TLE49611 Series

Part	Polarization	Package / Case	Voltage - Supply [Min]	Voltage - Supply [Max]	Function	Grade	Technology	Mounting Type	Current - Supply (Max) [Max]	Current - Output (Max) [Max]	Supplier Device Package	Qualification	Test Condition	Features	Sensing Range [Max]	Sensing Range [Min]	Output Type
Infineon Technologies TLE49611LHALA1	South Pole	3-SSIP SSO-3-02	3 V	32 VDC	Latch	Automotive	Hall Effect	Through Hole	2.5 mA	25 mA	PG-SSO-3-2	AEC-Q100	25 °C	Temperature Compensated	3.5 mT	-3.5 mT	Open Drain

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.98
		10	$ 0.74
		25	$ 0.59
		100	$ 0.54
		500	$ 0.45
		1000	$ 0.43
	Tape & Box (TB)	2000	$ 0.43
Newark	Each	1	$ 0.81
		10	$ 0.67
		100	$ 0.61
		500	$ 0.54
		1000	$ 0.52
		4000	$ 0.43

Description

General part information

TLE49611 Series

TLE49611LHALA1 is a high precision automotive hall effect latch. Target applications for the TLE496x hall switch family are all applications that require a high-precision hall switch with an operating temperature range from -40°C to 170°C. Its superior supply voltage range from 3.0V to 32V with overvoltage capability (e.g. load-dump) up to 42V without an external resistor makes it ideally suited for automotive and industrial applications. The magnetic behavior as a latch and switching thresholds of typical ±2mT make the device especially suited for the use of a pole wheel for index counting applications e.g. power closing and window lifter.

Documents

Technical documentation and resources

Technical Data Sheet EN

Datasheet
