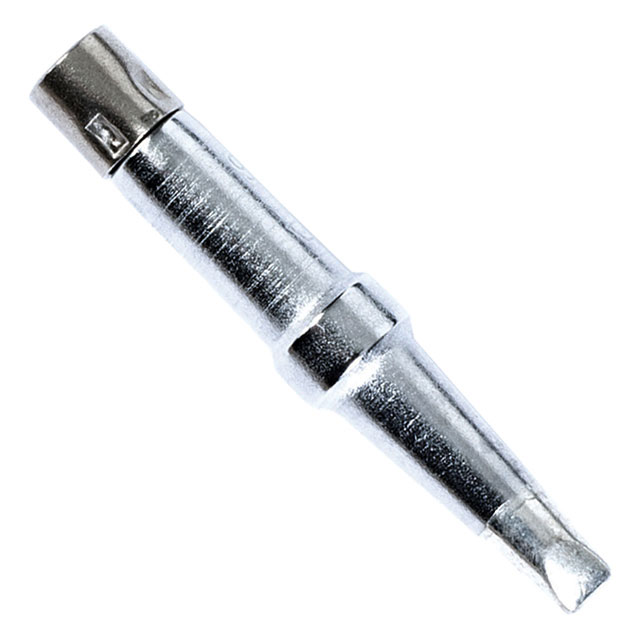

SOLDER TIP
Search across all available documentation for this part.
SOLDER TIP
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
General part information
SOLDER TIP
Technical documentation and resources
Parameters and characteristics commom to parts in this series
| Specification | C-3036-8 | C-3036 Series |
|---|---|---|
| For Use With/Related Products | TC201T, WTCPT, WTCPN, TC201FE, WTCPS, WTCPTD, WTCPTFE | TC201T, WTCPT, WTCPN, TC201FE, WTCPS, WTCPTD, WTCPTFE |
| Temperature Range | 427 °C | 427 - 482 °C |
| Temperature Range | 800 °F | 800 - 900 °F |
| Tip Shape | Screwdriver | Screwdriver |
| Tip Type | Soldering | Soldering |
| Width | - | 0.126 in |
| Width | - | 3.2 mm |
| Width [y] | 3.18 mm | 3.18 mm |
| Width [y] | 0.125 in | 0.125 in |
SOLDER TIP
| Part | Tip Shape | Tip Type | Width [x] | Width [x] | For Use With/Related Products | Temperature Range | Temperature Range | Width [y] | Width [y] |
|---|---|---|---|---|---|---|---|---|---|
Techspray C-3036-9 | Screwdriver | Soldering | 0.126 in | 3.2 mm | TC201FE, TC201T, WTCPN, WTCPS, WTCPT, WTCPTD, WTCPTFE | 900 °F | 482 °C | ||
Techspray C-3036-8 | Screwdriver | Soldering | TC201FE, TC201T, WTCPN, WTCPS, WTCPT, WTCPTD, WTCPTFE | 800 °F | 427 °C | 3.18 mm | 0.125 in |
