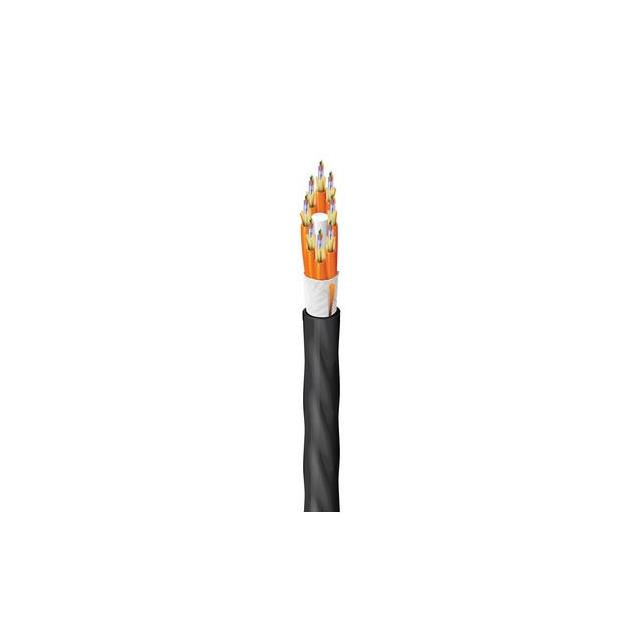

FD1D096LK

Active

Belden Inc.

CBL FIBER OPTIC

Search across all available documentation for this part.

Active

Belden Inc.

CBL FIBER OPTIC

Technical Specifications

Parameters and characteristics for this part

Specification	FD1D096LK

Cladding Diameter [diameter]	125 µm
Core Diameter [diameter]	62.5 µm
Features	Rip Cord
Features	96 Fibers
Jacket (Insulation) Diameter [diameter]	24.82 mm
Jacket (Insulation) Diameter [diameter]	0.977 in
Jacket Color	Black
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Ratings	OFNR
Style	Multiple Fibers
Tensile Strength	81.6 kg
Type	Multimode

Part	Tensile Strength	Operating Temperature [Min]	Operating Temperature [Max]	Jacket Color	Style	Cladding Diameter [diameter]	Features	Features	Core Diameter [diameter]	Jacket (Insulation) Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Ratings	Type
Belden Inc. FD1D096AK	81.6 kg	-40 °C	70 °C	Black	Multiple Fibers	125 µm	Armored	96 Fibers	62.5 µm	Poly-Vinyl Chloride (PVC)	1.26 in	32 mm	OFCP	Multimode
Belden Inc. FD1D096PK	81.6 kg	-40 °C	70 °C	Black	Multiple Fibers	125 µm	Rip Cord	96 Fibers	62.5 µm	Poly-Vinyl Chloride (PVC)	0.9 "	22.86 mm	OFNP	Multimode
Belden Inc. FD1D096LK	81.6 kg	-40 °C	70 °C	Black	Multiple Fibers	125 µm	Rip Cord	96 Fibers	62.5 µm		0.977 in	24.82 mm	OFNR	Multimode

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 31.76

General part information

Fiber Optic Cable Black Multimode 125µm
