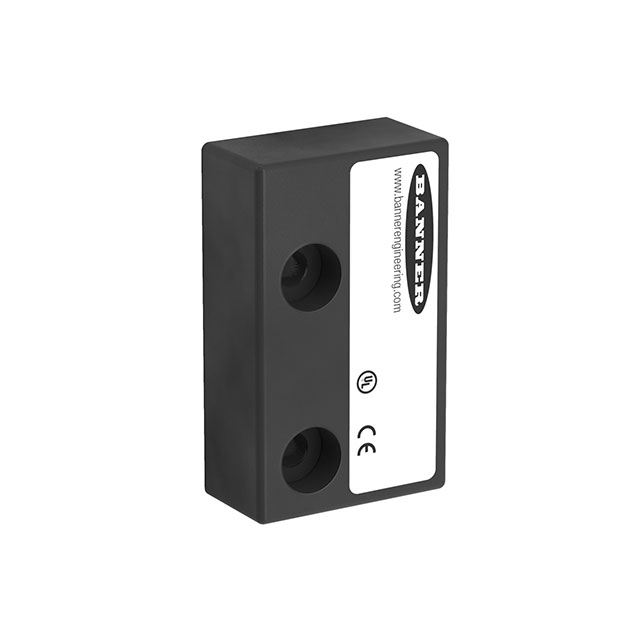

SI-MAGB2MM

Active

BANNER ENGINEERING

SWITCH REPLACEMENT MAGNET, BANNER ENGINEERING SI-MAGB2SM MAGNETIC SAFETY INTERLOCK SWITCH

Search across all available documentation for this part.

Active

BANNER ENGINEERING

SWITCH REPLACEMENT MAGNET, BANNER ENGINEERING SI-MAGB2SM MAGNETIC SAFETY INTERLOCK SWITCH

Technical Specifications

Parameters and characteristics for this part

Specification	SI-MAGB2MM

For Use With/Related Products	SI-MAG Series
Housing Material	Thermoplastic
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Package / Case	Flange Mount
Size [x]	43 mm
Size [x]	1.693 in
Size [y]	1.024 in
Size [y]	26 mm
Size [z]	0.512 in
Size [z]	13 mm

Part	Operating Temperature [Max]	Operating Temperature [Min]	Type	Actuator Material	Termination Style	Output Type	Size [x]	Size [z]	Size [y]	Size [z]	Size [x]	Size [y]	Housing Material	For Use With/Related Products	Package / Case
BANNER ENGINEERING SI-MAGB2SM W/30	70 °C	-25 °C	Switch	Magnet	Cable	NO/NC
BANNER ENGINEERING SI-MAGB2MM	70 °C	-25 °C					43 mm	0.512 in	1.024 in	13 mm	1.693 in	26 mm	Thermoplastic	SI-MAG Series	Flange Mount
BANNER ENGINEERING SI-MAGB2SMQD	70 °C	-25 °C	Switch	Magnet	Connector	NO/NC
BANNER ENGINEERING SI-MAGB2SM	70 °C	-25 °C	Switch	Magnet	Cable	NO/NC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 20.00
Newark	Each	1	$ 20.58

General part information

SI-MAG Series Magnet 1.693" L x 1.024" W x 0.512" H (43.0mm x 26.0mm x 13.0mm) Thermoplastic Housing

Technical documentation and resources
