M80-4S11642F9

Active

Harwin Inc.

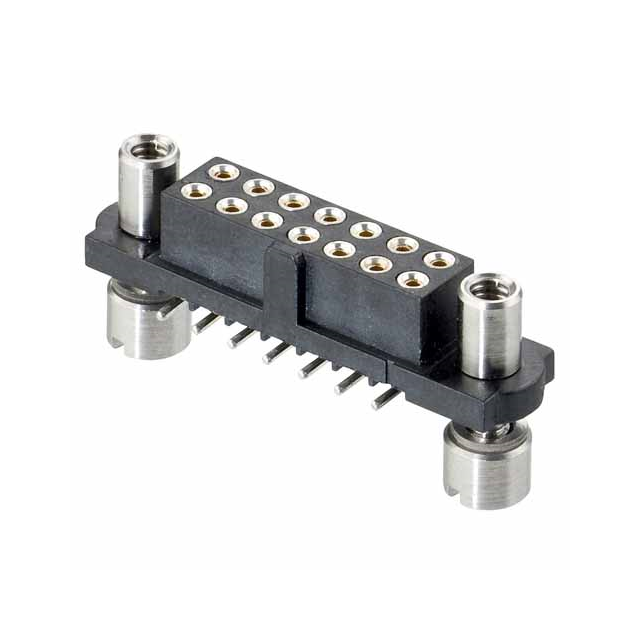

8+8 POS. FEMALE DIL VERTICAL SMT CONN. REVERSE FIX ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Harwin Inc.

8+8 POS. FEMALE DIL VERTICAL SMT CONN. REVERSE FIX ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	M80-4S11642F9

Applications	Automotive, Military, General Purpose
Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	12 µin
Contact Finish Thickness - Mating	0.3 µm
Contact Finish Thickness - Post	137.8 Áin
Contact Finish Thickness - Post	3.5 Ám
Contact Material	Beryllium Copper
Contact Shape	Circular
Contact Type	Female Socket
Features	Polarizing Key, Mounting Flange, Jackscrews, Mating Flange
Insulation Color	Black
Insulation Height	5.6 mm
Insulation Height	0.22 in
Insulation Material	Polyphenylene Sulfide (PPS), Glass Filled
Mated Stacking Heights	8.05 mm, 7.8 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	16
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	800 V

Part	Termination	Pitch - Mating [x]	Pitch - Mating [x]	Voltage Rating	Applications	Contact Finish - Post	Contact Shape	Operating Temperature [Min]	Operating Temperature [Max]	Mated Stacking Heights	Insulation Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Connector Type	Row Spacing - Mating	Row Spacing - Mating	Number of Rows	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Type	Material Flammability Rating	Style	Mounting Type	Number of Positions	Contact Finish - Mating	Insulation Color	Number of Positions Loaded	Insulation Height	Insulation Height	Contact Material	Features	Number of Positions
Harwin Inc. M80-4S15042F9	Solder	0.079 in	2 mm	800 V	Automotive General Purpose Military	Tin	Circular	-55 °C	125 °C	7.8 mm 8.05 mm	Polyphenylene Sulfide (PPS) Glass Filled	137.8 Áin	3.5 Ám	Receptacle	0.079 in	2 mm	2	12 µin	0.3 µm	Female Socket	UL94 V-0	Board to Board Cable	Surface Mount	50	Gold	Black	All	5.6 mm	0.22 in	Beryllium Copper	Jackscrews Mating Flange Mounting Flange Polarizing Key
Harwin Inc. M80-4S11642F9	Solder	0.079 in	2 mm	800 V	Automotive General Purpose Military	Tin	Circular	-55 °C	125 °C	7.8 mm 8.05 mm	Polyphenylene Sulfide (PPS) Glass Filled	137.8 Áin	3.5 Ám	Receptacle	0.079 in	2 mm	2	12 µin	0.3 µm	Female Socket	UL94 V-0	Board to Board Cable	Surface Mount		Gold	Black	All	5.6 mm	0.22 in	Beryllium Copper	Jackscrews Mating Flange Mounting Flange Polarizing Key	16

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

16 Position Receptacle Connector 0.079" (2.00mm) Surface Mount Gold
