5328UL 0021000

Active

Belden Inc.

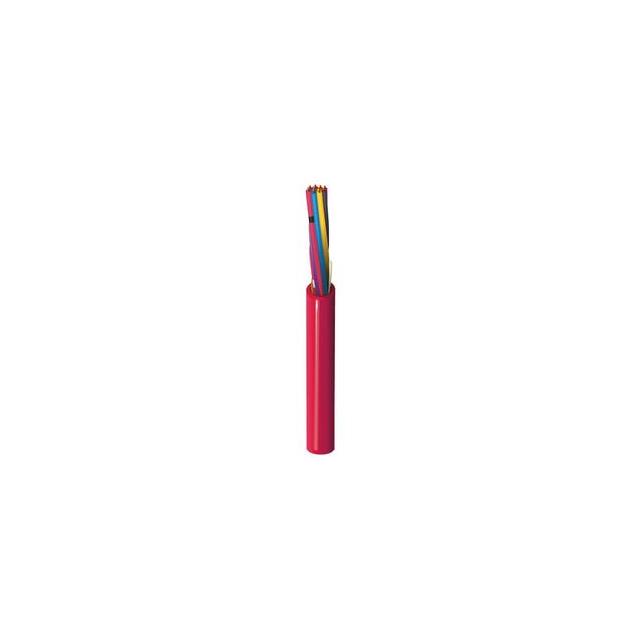

CABLE 10COND 18AWG RED

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 10COND 18AWG RED

Technical Specifications

Parameters and characteristics for this part

Specification	5328UL 0021000

Cable Type	Multi-Conductor
Conductor Insulation	Polypropylene (PP)
Conductor Material	Copper, Bare
Conductor Strand	Solid
Features	Rip Cord
Jacket (Insulation) Diameter [diameter]	6.45 mm
Jacket (Insulation) Diameter [diameter]	0.254 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC), Riser
Jacket (Insulation) Thickness	0.457 mm
Jacket (Insulation) Thickness	0.018 in
Jacket Color	Red
Length	1000 ft
Length	304.8 m
Number of Conductors	10
Ratings	UL Style FPLR
Usage	Alarm, Safety
Voltage	300 V
Wire Gauge	18 AWG

Part	Features	Length	Length	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Ratings	Number of Conductors	Voltage	Conductor Strand	Conductor Material	Jacket Color	Conductor Insulation	Usage	Wire Gauge	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Cable Type	Jacket (Insulation) Material
Belden Inc. 5328UL 0021000	Rip Cord	1000 ft	304.8 m	0.457 mm	0.018 in	UL Style FPLR	10	300 V	Solid	Copper Bare	Red	Polypropylene (PP)	Alarm Safety	18 AWG	6.45 mm	0.254 in	Multi-Conductor	Poly-Vinyl Chloride (PVC) Riser

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 0.89

General part information

10 Conductor Multi-Conductor Cable Red 18 AWG 1000.0' (304.8m)
