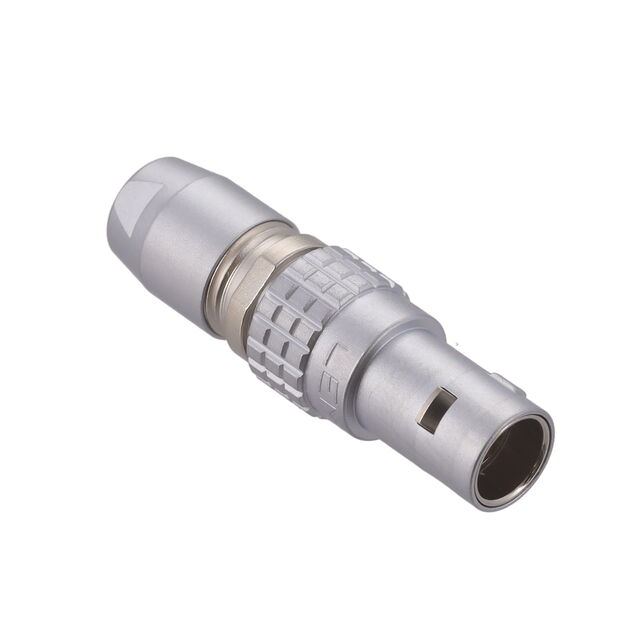

JGG.0B.303.CLAD42
ActiveLEMO
CONN PLUG MALE 3P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
JGG.0B.303.CLAD42
ActiveLEMO
CONN PLUG MALE 3P GOLD SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | JGG.0B.303.CLAD42 | JGG.0B Series |
|---|---|---|
| Backshell Material, Plating | Brass, Chrome | Brass, Chrome |
| Cable Opening | - | 0.165 - 0.205 in |
| Cable Opening | - | 4.2 mm |
| Cable Opening | - | 5.2 mm |
| Cable Opening | - | 0.055 - 0.126 in |
| Cable Opening | - | 1.4 - 3.2 mm |
| Cable Opening [Max] [custom] | 4.2 mm | 4.2 mm |
| Cable Opening [Max] [custom] | 0.165 in | 0.165 in |
| Cable Opening [Min] [custom] | 0.126 in | 0.126 in |
| Cable Opening [Min] [custom] | 3.2 mm | 3.2 mm |
| Color | Silver | Silver |
| Connector Type | Plug, Male Pins | Plug, Male Pins |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish Thickness - Mating | 1 µm | 1 µm |
| Contact Finish Thickness - Mating | 39.4 µin | 39.4 µin |
| Contact Material | Brass | Brass |
| Current Rating (Amps) | 8 A | 2 - 10 A |
| Fastening Type | Push-Pull | Push-Pull, Detent Lock |
| Features | Backshell | Backshell |
| Ingress Protection | IP50 | IP50, IP66/IP68 |
| Insert Material | Polyetheretherketone (PEEK) | Polyetheretherketone (PEEK) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | - | 2 - 9 |
| Operating Temperature [Max] | 250 °C | 200 - 250 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | G | G |
| Primary Material | Metal | Metal |
| Shell Finish | Chrome | Chrome |
| Shell Material | Brass | Brass |
| Shell Size - Insert | 303 | 302 - 309 |
| Shielding | Shielded | Shielded |
JGG.0B Series
CONN PLUG MALE 5P GOLD SLDR CUP
| Part | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Color | Shielding | Features | Material Flammability Rating | Insert Material | Shell Finish | Ingress Protection | Primary Material | Connector Type | Shell Size - Insert | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Max] [custom] | Cable Opening [Min] [custom] | Contact Material | Mounting Type | Shell Material | Current Rating (Amps) | Backshell Material, Plating | Operating Temperature [Min] | Operating Temperature [Max] | Orientation | Fastening Type | Contact Finish - Mating | Cable Opening [diameter] | Cable Opening [diameter] | Cable Opening [diameter] | Number of Positions | Cable Opening [custom] | Cable Opening [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
1 µm | 39.4 µin | Silver | Shielded | Backshell | UL94 V-0 | Polyetheretherketone (PEEK) | Chrome | IP50 | Metal | Male Pins, Plug | 305 | 0.126 in | 4.2 mm | 0.165 in | 3.2 mm | Brass | Free Hanging (In-Line) | Brass | 6.5 A | Brass, Chrome | -55 °C | 250 °C | G | Push-Pull | Gold | |||||||
1 µm | 39.4 µin | Silver | Shielded | Backshell | UL94 V-0 | Polyetheretherketone (PEEK) | Chrome | IP50 | Metal | Male Pins, Plug | 303 | 0.126 in | 4.2 mm | 0.165 in | 3.2 mm | Brass | Free Hanging (In-Line) | Brass | 8 A | Brass, Chrome | -55 °C | 250 °C | G | Push-Pull | Gold | |||||||
1 µm | 39.4 µin | Silver | Shielded | Backshell | UL94 V-0 | Polyetheretherketone (PEEK) | Chrome | IP50 | Metal | Male Pins, Plug | 309 | Brass | Free Hanging (In-Line) | Brass | 2 A | Brass, Chrome | -55 °C | 250 °C | G | Push-Pull | Gold | 0.165 in, 0.205 in | 4.2 mm | 5.2 mm | 9 | |||||||
1 µm | 39.4 µin | Silver | Shielded | Backshell | UL94 V-0 | Polyetheretherketone (PEEK) | Chrome | IP50 | Metal | Male Pins, Plug | 307 | Brass | Free Hanging (In-Line) | Brass | 2.5 A | Brass, Chrome | -55 °C | 250 °C | G | Push-Pull | Gold | 0.165 in, 0.205 in | 4.2 mm | 5.2 mm | 7 | |||||||
1 µm | 39.4 µin | Silver | Shielded | Backshell | UL94 V-0 | Polyetheretherketone (PEEK) | Chrome | IP50 | Metal | Male Pins, Plug | 306 | Brass | Free Hanging (In-Line) | Brass | 2.5 A | Brass, Chrome | -55 °C | 250 °C | G | Push-Pull | Gold | 6 | 0.091 in, 0.126 in | 2.3 mm, 3.2 mm | ||||||||
1 µm | 39.4 µin | Silver | Shielded | Backshell | UL94 V-0 | Polyetheretherketone (PEEK) | Chrome | IP50 | Metal | Male Pins, Plug | 302 | Brass | Free Hanging (In-Line) | Brass | 10 A | Brass, Chrome | -55 °C | 250 °C | G | Push-Pull | Gold | 2 | 0.055 in, 0.087 in | 1.4 mm, 2.2 mm | ||||||||
1 µm | 39.4 µin | Silver | Shielded | Backshell | UL94 V-0 | Polyetheretherketone (PEEK) | Chrome | IP50 | Metal | Male Pins, Plug | 306 | Brass | Free Hanging (In-Line) | Brass | 2.5 A | Brass, Chrome | -55 °C | 250 °C | G | Push-Pull | Gold | 6 | 0.055 in, 0.087 in | 1.4 mm, 2.2 mm | ||||||||
1 µm | 39.4 µin | Silver | Shielded | Backshell | UL94 V-0 | Polyetheretherketone (PEEK) | Chrome | IP50 | Metal | Male Pins, Plug | 306 | 0.126 in | 4.2 mm | 0.165 in | 3.2 mm | Brass | Free Hanging (In-Line) | Brass | 2.5 A | Brass, Chrome | -55 °C | 250 °C | G | Push-Pull | Gold | 6 | ||||||
Silver | Shielded | Backshell | UL94 V-0 | Polyetheretherketone (PEEK) | Chrome | IP66/IP68 | Metal | Male Pins, Plug | 304 | Brass | Free Hanging (In-Line) | Brass | 7 A | Brass, Chrome | -55 °C | 200 °C | G | Detent Lock, Push-Pull | Gold | 0.165 in, 0.205 in | 4.2 mm | 5.2 mm | 4 | |||||||||
1 µm | 39.4 µin | Silver | Shielded | Backshell | UL94 V-0 | Polyetheretherketone (PEEK) | Chrome | IP50 | Metal | Male Pins, Plug | 302 | Brass | Free Hanging (In-Line) | Brass | 10 A | Brass, Chrome | -55 °C | 250 °C | G | Push-Pull | Gold | 0.165 in, 0.205 in | 4.2 mm | 5.2 mm | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 32.01 | |
| 10 | $ 28.03 | |||
| 25 | $ 26.82 | |||
| 50 | $ 25.95 | |||
| 100 | $ 25.09 | |||
| 250 | $ 23.70 | |||
Description
General part information
JGG.0B Series
3 Position Circular Connector Plug, Male Pins Solder Cup
