JGG.0B.304.CLAD52

Active

LEMO

CONN PLUG MALE 4P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

JGG.0B.304.CLAD52

Active

LEMO

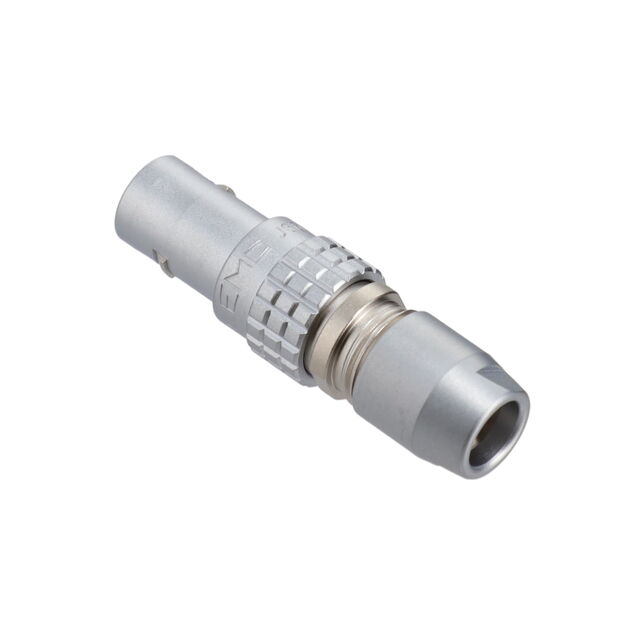

CONN PLUG MALE 4P GOLD SLDR CUP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 33.80
		10	$ 29.60
		25	$ 28.32
		50	$ 27.41
		100	$ 26.49
		250	$ 25.03

Description

General part information

JGG.0B Series

4 Position Circular Connector Plug, Male Pins Solder Cup

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	JGG.0B.304.CLAD52	JGG.0B Series

Backshell Material, Plating	Brass, Chrome	Brass, Chrome
Cable Opening	-	0.126 in
Cable Opening	-	4.2 mm
Cable Opening	-	0.165 in
Cable Opening	-	3.2 mm
Cable Opening	-	0.055 - 0.126 in
Cable Opening	-	1.4 - 3.2 mm
Cable Opening [diameter]	0.205 in, 0.165 in	0.165 - 0.205 in
Cable Opening [diameter]	4.2 mm	4.2 mm
Cable Opening [diameter]	5.2 mm	5.2 mm
Color	Silver	Silver
Connector Type	Plug, Male Pins	Plug, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	-	1 µm
Contact Finish Thickness - Mating	-	39.4 µin
Contact Material	Brass	Brass
Current Rating (Amps)	7 A	2 - 10 A
Fastening Type	Detent Lock, Push-Pull	Push-Pull, Detent Lock
Features	Backshell	Backshell
Ingress Protection	IP66/IP68	IP50, IP66/IP68
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	4	2 - 9
Operating Temperature [Max]	200 °C	200 - 250 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	G	G
Primary Material	Metal	Metal
Shell Finish	Chrome	Chrome
Shell Material	Brass	Brass
Shell Size - Insert	304	302 - 309
Shielding	Shielded	Shielded

JGG.0B Series

CONN PLUG MALE 5P GOLD SLDR CUP

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Color	Shielding	Features	Material Flammability Rating	Insert Material	Shell Finish	Ingress Protection	Primary Material	Connector Type	Shell Size - Insert	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Contact Material	Mounting Type	Shell Material	Current Rating (Amps)	Backshell Material, Plating	Operating Temperature [Min]	Operating Temperature [Max]	Orientation	Fastening Type	Contact Finish - Mating	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [diameter]	Number of Positions	Cable Opening [custom]	Cable Opening [custom]
LEMO JGG.0B.305.CLAD42	1 µm	39.4 µin	Silver	Shielded	Backshell	UL94 V-0	Polyetheretherketone (PEEK)	Chrome	IP50	Metal	Male Pins, Plug	305	0.126 in	4.2 mm	0.165 in	3.2 mm	Brass	Free Hanging (In-Line)	Brass	6.5 A	Brass, Chrome	-55 °C	250 °C	G	Push-Pull	Gold
LEMO JGG.0B.303.CLAD42	1 µm	39.4 µin	Silver	Shielded	Backshell	UL94 V-0	Polyetheretherketone (PEEK)	Chrome	IP50	Metal	Male Pins, Plug	303	0.126 in	4.2 mm	0.165 in	3.2 mm	Brass	Free Hanging (In-Line)	Brass	8 A	Brass, Chrome	-55 °C	250 °C	G	Push-Pull	Gold
LEMO JGG.0B.309.CLAD52	1 µm	39.4 µin	Silver	Shielded	Backshell	UL94 V-0	Polyetheretherketone (PEEK)	Chrome	IP50	Metal	Male Pins, Plug	309					Brass	Free Hanging (In-Line)	Brass	2 A	Brass, Chrome	-55 °C	250 °C	G	Push-Pull	Gold	0.165 in, 0.205 in	4.2 mm	5.2 mm	9
LEMO JGG.0B.307.CLAD52	1 µm	39.4 µin	Silver	Shielded	Backshell	UL94 V-0	Polyetheretherketone (PEEK)	Chrome	IP50	Metal	Male Pins, Plug	307					Brass	Free Hanging (In-Line)	Brass	2.5 A	Brass, Chrome	-55 °C	250 °C	G	Push-Pull	Gold	0.165 in, 0.205 in	4.2 mm	5.2 mm	7
LEMO JGG.0B.306.CLAD31Z	1 µm	39.4 µin	Silver	Shielded	Backshell	UL94 V-0	Polyetheretherketone (PEEK)	Chrome	IP50	Metal	Male Pins, Plug	306					Brass	Free Hanging (In-Line)	Brass	2.5 A	Brass, Chrome	-55 °C	250 °C	G	Push-Pull	Gold				6	0.091 in, 0.126 in	2.3 mm, 3.2 mm
LEMO JGG.0B.302.CLAD21Z	1 µm	39.4 µin	Silver	Shielded	Backshell	UL94 V-0	Polyetheretherketone (PEEK)	Chrome	IP50	Metal	Male Pins, Plug	302					Brass	Free Hanging (In-Line)	Brass	10 A	Brass, Chrome	-55 °C	250 °C	G	Push-Pull	Gold				2	0.055 in, 0.087 in	1.4 mm, 2.2 mm
LEMO JGG.0B.306.CLAD21	1 µm	39.4 µin	Silver	Shielded	Backshell	UL94 V-0	Polyetheretherketone (PEEK)	Chrome	IP50	Metal	Male Pins, Plug	306					Brass	Free Hanging (In-Line)	Brass	2.5 A	Brass, Chrome	-55 °C	250 °C	G	Push-Pull	Gold				6	0.055 in, 0.087 in	1.4 mm, 2.2 mm
LEMO JGG.0B.306.CLAD42	1 µm	39.4 µin	Silver	Shielded	Backshell	UL94 V-0	Polyetheretherketone (PEEK)	Chrome	IP50	Metal	Male Pins, Plug	306	0.126 in	4.2 mm	0.165 in	3.2 mm	Brass	Free Hanging (In-Line)	Brass	2.5 A	Brass, Chrome	-55 °C	250 °C	G	Push-Pull	Gold				6
LEMO JGG.0B.304.CLAD52			Silver	Shielded	Backshell	UL94 V-0	Polyetheretherketone (PEEK)	Chrome	IP66/IP68	Metal	Male Pins, Plug	304					Brass	Free Hanging (In-Line)	Brass	7 A	Brass, Chrome	-55 °C	200 °C	G	Detent Lock, Push-Pull	Gold	0.165 in, 0.205 in	4.2 mm	5.2 mm	4
LEMO JGG.0B.302.CLAD52	1 µm	39.4 µin	Silver	Shielded	Backshell	UL94 V-0	Polyetheretherketone (PEEK)	Chrome	IP50	Metal	Male Pins, Plug	302					Brass	Free Hanging (In-Line)	Brass	10 A	Brass, Chrome	-55 °C	250 °C	G	Push-Pull	Gold	0.165 in, 0.205 in	4.2 mm	5.2 mm	2
