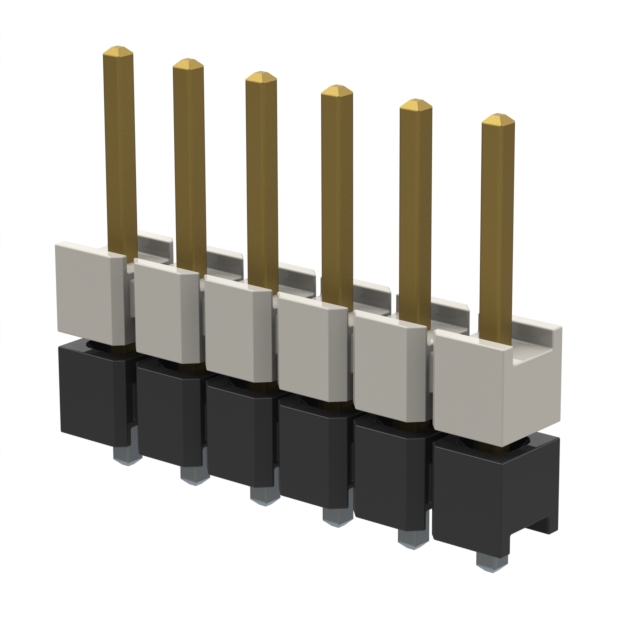

HW-06-16-F-S-270-080

Active

Samtec Inc.

CONN HDR 6POS 0.1 STACK T/H

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HW-06-16-F-S-270-080

Active

Samtec Inc.

CONN HDR 6POS 0.1 STACK T/H

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HW-06-16-F-S-270-080

Color	Black
Contact Finish - Post (Mating)	Gold
Contact Finish Thickness - Post (Mating)	3 Áin
Contact Finish Thickness - Post (Mating)	0.076 Ám
Length - Overall Pin [x]	11.303 mm
Length - Overall Pin [x]	0.445 in
Length - Post (Mating) [x]	2.413 mm
Length - Post (Mating) [x]	0.095 in
Length - Stack Height [x]	0.27 in
Length - Stack Height [x]	6.858 mm
Length - Tail [x]	0.08 in
Length - Tail [x]	2.032 mm
Mounting Type	Through Hole
Number of Positions	6
Number of Rows	1
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Termination	Solder

HW-06-16 Series

Part	Color	Row Spacing [x]	Row Spacing	Termination	Contact Finish - Post (Mating)	Length - Stack Height [x]	Length - Stack Height [x]	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)	Mounting Type	Number of Positions	Length - Overall Pin [x]	Length - Overall Pin [x]	Pitch [x]	Pitch [x]	Number of Rows	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Length - Tail [x]	Length - Tail [x]
Samtec Inc. HW-06-16-G-D-250-SM	Black	0.1 in	2.54 mm	Solder	Gold	0.25 in	6.35 mm	0.25 Ám	10 Áin	Surface Mount	12	0.38 in	9.65 mm	2.54 mm	0.1 in	2	3.302 mm	0.13 in
Samtec Inc. HW-06-16-T-S-375-SM	Black			Solder	Tin	0.375 in	9.525 mm			Surface Mount	6	0.38 in	9.65 mm	2.54 mm	0.1 in	1	0.127 mm	0.005 in
Samtec Inc. HW-06-16-F-D-255-SM	Black	0.1 in	2.54 mm	Solder	Gold	0.255 in	6.477 mm	0.076 Ám	3 Áin	Surface Mount	12	0.38 in	9.65 mm	2.54 mm	0.1 in	2	3.175 mm	0.125 in
Samtec Inc. HW-06-16-G-D-300-SM-A	Black	0.1 in	2.54 mm	Solder	Gold	0.3 in	7.62 mm	0.25 Ám	10 Áin	Surface Mount	12	0.38 in	9.65 mm	2.54 mm	0.1 in	2
Samtec Inc. HW-06-16-F-S-270-080	Black			Solder	Gold	0.27 in	6.858 mm	0.076 Ám	3 Áin	Through Hole	6	0.445 in	11.303 mm	2.54 mm	0.1 in	1	2.413 mm	0.095 in	0.08 in	2.032 mm
Samtec Inc. HW-06-16-T-D-250-SM-A	Black	0.1 in	2.54 mm	Solder	Tin	0.25 in	6.35 mm			Surface Mount	12	0.38 in	9.65 mm	2.54 mm	0.1 in	2	3.302 mm	0.13 in
Samtec Inc. HW-06-16-T-S-300-SM	Black			Solder	Tin	0.3 in	7.62 mm			Surface Mount	6	0.38 in	9.65 mm	2.54 mm	0.1 in	1
Samtec Inc. HW-06-16-F-D-250-SM	Black	0.1 in	2.54 mm	Solder	Gold	0.25 in	6.35 mm	0.076 Ám	3 Áin	Surface Mount	12	0.38 in	9.65 mm	2.54 mm	0.1 in	2	3.302 mm	0.13 in
Samtec Inc. HW-06-16-F-D-280-SM-LC	Black	0.1 in	2.54 mm	Solder	Gold	0.28 in	7.112 mm	0.076 Ám	3 Áin	Surface Mount	12	0.38 in	9.65 mm	2.54 mm	0.1 in	2	2.54 mm	0.1 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.13

Description

General part information

HW-06-16 Series

6 Position Header Spacer Connector 0.100" (2.54mm) Gold Through Hole
