CCH112-S10-C

Active

Panduit Corp

FIXED DIA CABLE CLAMP, BUNDLE DIA 1.12, # 10 SCREW MOUNT ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Panduit Corp

FIXED DIA CABLE CLAMP, BUNDLE DIA 1.12, # 10 SCREW MOUNT ROHS COMPLIANT: YES

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

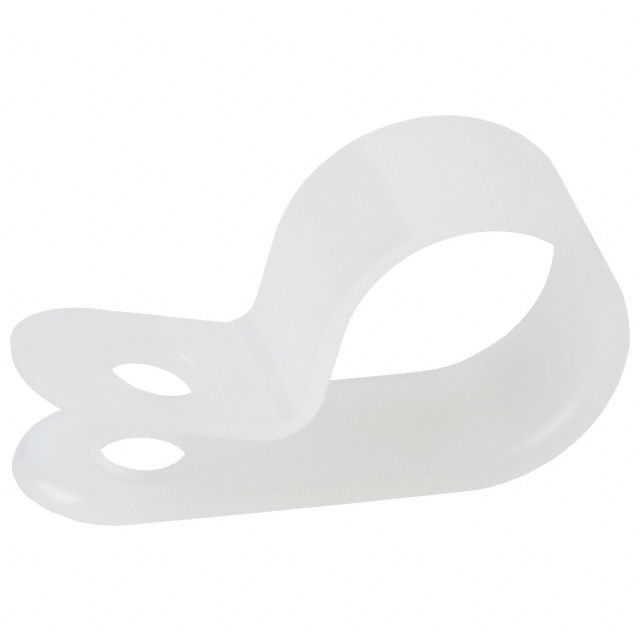

Cable Clamp, P-Type Natural Fastener 1.120" (28.45mm)

Technical documentation and resources

Specification	CCH112-S10-C	CCH112 Series

Bundle Center to Mounting Center	0.97 in	0.97 in
Bundle Center to Mounting Center	24.64 mm	24.64 mm
Color	Natural	Black, Natural
Features	-	Weather Resistant
Material	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2	UL94 V-2
Material Thickness	0.05 in	0.05 in
Material Thickness	1.27 mm	1.27 mm
Mounting Type	Fastener	Fastener
Opening Size [custom]	1.12 in	1.12 in
Opening Size [custom]	28.45 mm	28.45 mm
Panel Hole Size	5.16 mm	5.16 mm
Panel Hole Size	0.203 in	0.203 in
Screw Size	M5	M5
Screw Size	#10	#10
Type	Clamp, P-Type	Clamp, P-Type

Part	Bundle Center to Mounting Center	Bundle Center to Mounting Center	Material Flammability Rating	Material	Mounting Type	Opening Size [custom]	Opening Size [custom]	Features	Material Thickness	Material Thickness	Color	Panel Hole Size	Panel Hole Size	Screw Size	Screw Size	Type
Panduit Corp CCH112-S10-C0	0.97 in	24.64 mm	UL94 V-2	Polyamide (PA66), Nylon 6/6	Fastener	1.12 in	28.45 mm	Weather Resistant	0.05 in	1.27 mm	Black	5.16 mm	0.203 in	M5	#10	Clamp, P-Type
Panduit Corp CCH112-S10-C	0.97 in	24.64 mm	UL94 V-2	Polyamide (PA66), Nylon 6/6	Fastener	1.12 in	28.45 mm		0.05 in	1.27 mm	Natural	5.16 mm	0.203 in	M5	#10	Clamp, P-Type
