Description
General part information
055755 Series

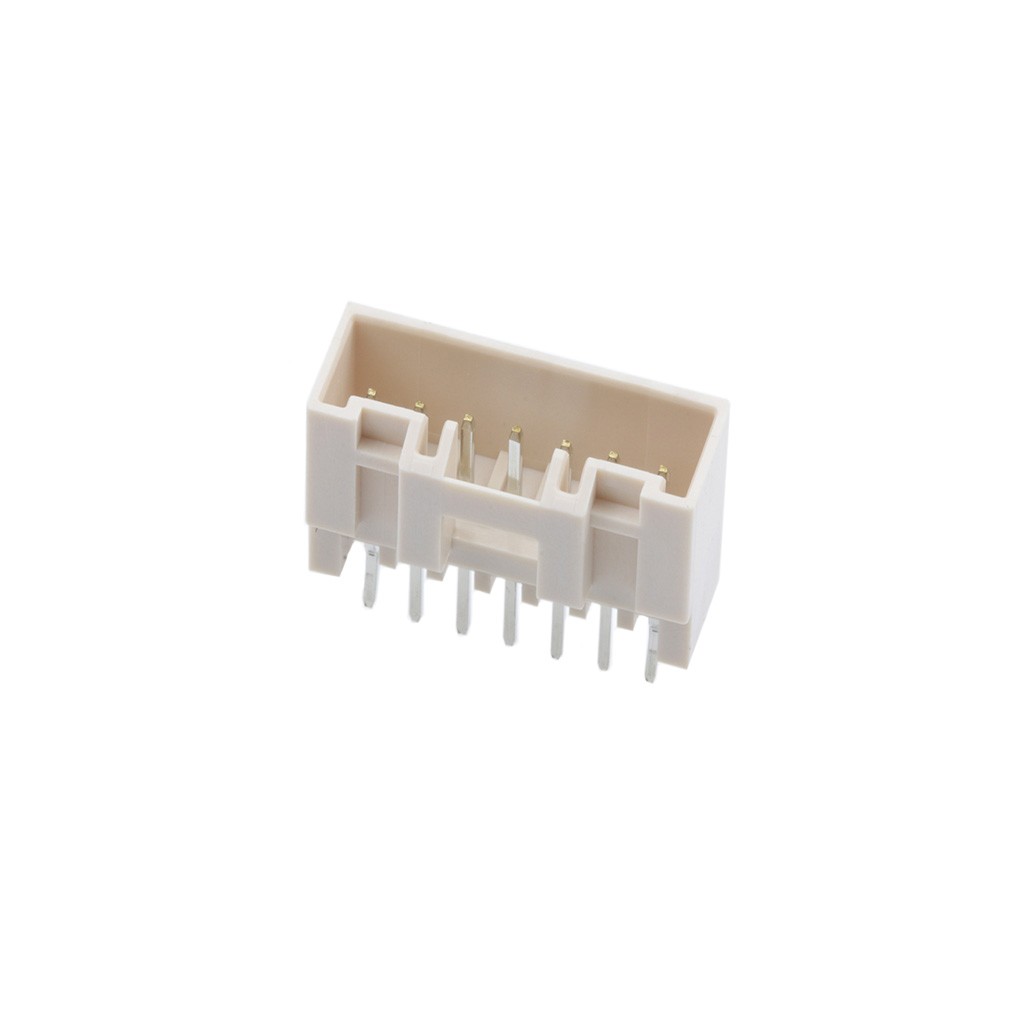

Connector Header Through Hole 8 position 0.079" (2.00mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | 0557550819 |
|---|---|
| Applications | Industrial, General Purpose, Automotive |
| Connector Type | Header |
| Contact Finish - Mating | Tin |
| Contact Finish - Post | Tin |
| Contact Length - Mating | 0.144 in |
| Contact Length - Post | 0.13 in |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Fastening Type | Latch Lock |
| Features | Board Guide |
| Insulation Color | Natural |
| Insulation Height | 0.352 in |
| Insulation Material | Nylon 6/6, Polyamide (PA66), Glass Filled |
| Mated Stacking Height | 13.45 mm |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 8 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Overall Contact Length | 0.437 in |
| Pitch - Mating | 0.079 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Cable/Wire, Board |
| Termination | Kinked Pin, Solder |
