845-128-558-507

Active

EDAC Inc.

CONN EDGE DUAL FML 128POS 0.100

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

845-128-558-507

Active

EDAC Inc.

CONN EDGE DUAL FML 128POS 0.100

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	845-128-558-507

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	M3, Threaded Insert, Top Mount Opening
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Through Hole, Right Angle
Number of Positions	128
Number of Positions/Bay/Row [custom]	64
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Dual
Termination	Solder
Termination Rows	2

845-128 Series

...

Part	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Number of Positions	Termination	Gender	Contact Material	Pitch [x]	Pitch [x]	Read Out	Contact Finish	Number of Rows	Termination Rows	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Material - Insulation	Card Type	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Color	Number of Positions/Bay/Row [custom]	Flange Feature	Flange Feature	Features
EDAC Inc. 845-128-544-803	2.95 mm	Floating Bobbin Top Mount Opening	0.116 in	128	Wire Wrap	Female	Copper Alloy	2.54 mm	0.1 in	Dual	Gold	2	2	1.37 mm	0.054 "	1.78 mm	0.07 in	Diallyl Phthalate (DAP)	Non Specified - Dual Edge	125 °C	-40 °C	Through Hole	Cantilever	10 Áin	0.25 Ám	Green	64
EDAC Inc. 845-128-525-807		M3 Threaded Insert Top Mount Opening		128	Solder	Female	Copper Alloy	2.54 mm	0.1 in	Dual	Gold	2	2	1.37 mm	0.054 "	1.78 mm	0.07 in	Diallyl Phthalate (DAP)	Non Specified - Dual Edge	125 °C	-40 °C	Through Hole	Cantilever	10 Áin	0.25 Ám	Green	64
EDAC Inc. 845-128-555-812		Side Mount Opening Unthreaded		128	Solder	Female	Copper Alloy	2.54 mm	0.1 in	Dual	Gold	2	2	1.37 mm	0.054 "	1.78 mm	0.07 in	Diallyl Phthalate (DAP)	Non Specified - Dual Edge	125 °C	-40 °C	Board Edge Straddle Mount	Cantilever	10 Áin	0.25 Ám	Green	64	3.25 mm	0.128 in	Card Extender
EDAC Inc. 845-128-500-802				128	Solder Eyelet(s)	Female	Copper Alloy	2.54 mm	0.1 in	Dual	Gold	2	2	1.37 mm	0.054 "	1.78 mm	0.07 in	Diallyl Phthalate (DAP)	Non Specified - Dual Edge	125 °C	-40 °C	Through Hole	Cantilever	10 Áin	0.25 Ám	Green	64	3.25 mm	0.128 in
EDAC Inc. 845-128-500-502				128	Solder Eyelet(s)	Female	Copper Alloy	2.54 mm	0.1 in	Dual	Gold	2	2	1.37 mm	0.054 "	1.78 mm	0.07 in	Diallyl Phthalate (DAP)	Non Specified - Dual Edge	125 °C	-40 °C	Through Hole	Cantilever	10 Áin	0.25 Ám	Green	64	3.25 mm	0.128 in
EDAC Inc. 845-128-544-503	2.95 mm	Floating Bobbin Top Mount Opening	0.116 in	128	Wire Wrap	Female	Copper Alloy	2.54 mm	0.1 in	Dual	Gold	2	2	1.37 mm	0.054 "	1.78 mm	0.07 in	Diallyl Phthalate (DAP)	Non Specified - Dual Edge	125 °C	-40 °C	Through Hole	Cantilever	10 Áin	0.25 Ám	Green	64
EDAC Inc. 845-128-521-807		M3 Threaded Insert Top Mount Opening		128	Solder	Female	Copper Alloy	2.54 mm	0.1 in	Dual	Gold	2	2	1.37 mm	0.054 "	1.78 mm	0.07 in	Diallyl Phthalate (DAP)	Non Specified - Dual Edge	125 °C	-40 °C	Through Hole	Cantilever	10 Áin	0.25 Ám	Green	64
EDAC Inc. 845-128-544-802				128	Wire Wrap	Female	Copper Alloy	2.54 mm	0.1 in	Dual	Gold	2	2	1.37 mm	0.054 "	1.78 mm	0.07 in	Diallyl Phthalate (DAP)	Non Specified - Dual Edge	125 °C	-40 °C	Through Hole	Cantilever	10 Áin	0.25 Ám	Green	64	3.25 mm	0.128 in
EDAC Inc. 845-128-558-507		M3 Threaded Insert Top Mount Opening		128	Solder	Female	Copper Alloy	2.54 mm	0.1 in	Dual	Gold	2	2	1.37 mm	0.054 "	1.78 mm	0.07 in	Diallyl Phthalate (DAP)	Non Specified - Dual Edge	125 °C	-40 °C	Through Hole Right Angle	Cantilever	10 Áin	0.25 Ám	Green	64
EDAC Inc. 845-128-540-507		M3 Threaded Insert Top Mount Opening		128	Wire Wrap	Female	Copper Alloy	2.54 mm	0.1 in	Dual	Gold	2	2	1.37 mm	0.054 "	1.78 mm	0.07 in	Diallyl Phthalate (DAP)	Non Specified - Dual Edge	125 °C	-40 °C	Through Hole	Cantilever	10 Áin	0.25 Ám	Green	64

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 107.35
Newark	Each	1	$ 156.14
		100	$ 104.59
		250	$ 88.64
		500	$ 80.18
		1000	$ 63.25

Description

General part information

845-128 Series

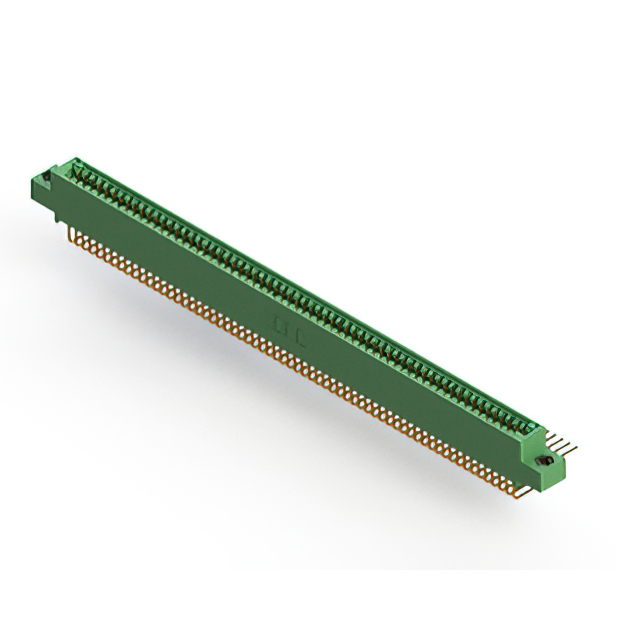

128 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
