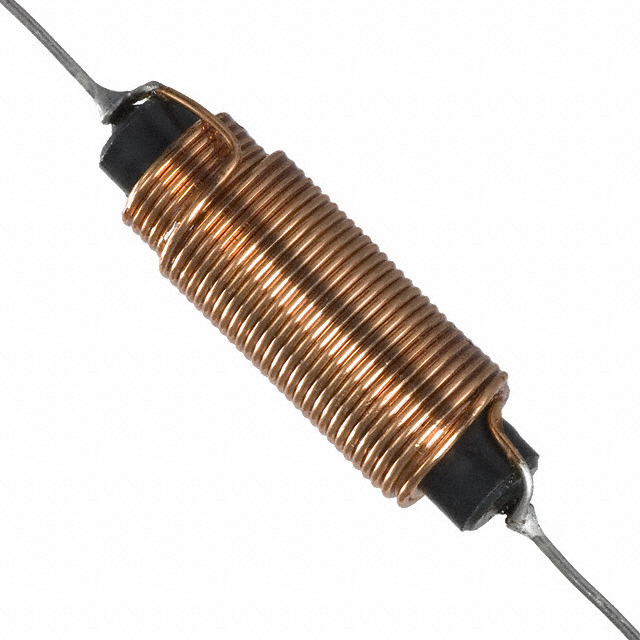

5219-RC
ActiveBourns Inc.
HASH CHOKE WIREWOUND 4.9UH 20% 7.96MHZ IRON 15A 0.016OHM DCR AXL BOX
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
5219-RC
ActiveBourns Inc.
HASH CHOKE WIREWOUND 4.9UH 20% 7.96MHZ IRON 15A 0.016OHM DCR AXL BOX
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 5219-RC |
|---|---|
| Current Rating (Amps) | 15 A |
| DC Resistance (DCR) | 16 mOhm |
| Frequency - Self Resonant | 95 MHz |
| Inductance | 4.9 µH |
| Inductance Frequency - Test | 7.96 MHz |
| Material - Core | Iron |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Axial |
| Shielding | Unshielded |
| Size / Dimension [diameter] | 0.6 in |
| Size / Dimension [diameter] | 15.24 mm |
| Size / Dimension [x] | 31.75 mm |
| Size / Dimension [x] | 1.25 " |
| Tolerance | 20 % |
| Type | Wirewound, Drum Core |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.75 | |
| 10 | $ 3.85 | |||
| 42 | $ 3.35 | |||
Description
General part information
5219 Series
4.9 µH Unshielded Drum Core, Wirewound Inductor 15 A 16mOhm Max Axial
