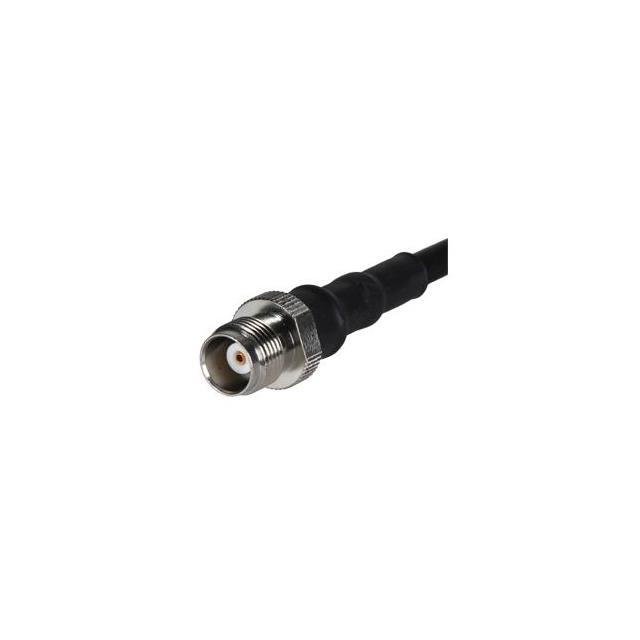

Specification	21_TNC-50-4-16/133_NE

Body Finish	White Bronze
Body Material	Brass
Cable Group	LMR-240
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	TNC
Connector Type	Jack, Female Socket
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE), Perfluoroalkoxy (PFA)
Fastening Type	Threaded
Frequency - Max	11 GHz
Housing Color	Silver
Impedance	50 Ohm
Mating Cycles	500 cycles
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature (Max)	165 °C
Operating Temperature (Min)	-65 °C
Shield Termination	Crimp
Voltage Rating	500 V

21_TNC-50 Series

Part	Connector Style	Contact Termination	Mounting Type	Number of Ports	Fastening Type	Cable Group	Impedance	Connector Type	Frequency - Max	Shield Termination	Housing Color	Center Contact Material	Voltage Rating	Operating Temperature (Min)	Operating Temperature (Max)	Mating Cycles	Center Contact Plating	Dielectric Material	Body Material	Body Finish
Huber+Suhner, Inc. 21_TNC-50-4-16/133_NE	TNC	Crimp	Free Hanging (In-Line)	1	Threaded	LMR-240	50 Ohm	Female Socket Jack	11 GHz	Crimp	Silver	Beryllium Copper	500 V	-65 °C	165 °C	500 cycles	Gold	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Brass	White Bronze
Huber+Suhner, Inc. 21_TNC-50-6-4/12-_NE	TNC	Crimp	Free Hanging (In-Line)	1	Threaded	RG-B6C	50 Ohm	Female Socket Jack	11 GHz	Clamp	Silver	Beryllium Copper	500 V	-60 °C	165 °C	500 cycles	Gold	Polytetrafluoroethylene (PTFE)	Brass	Nickel
