BYT230Y-400

Active

STMicroelectronics

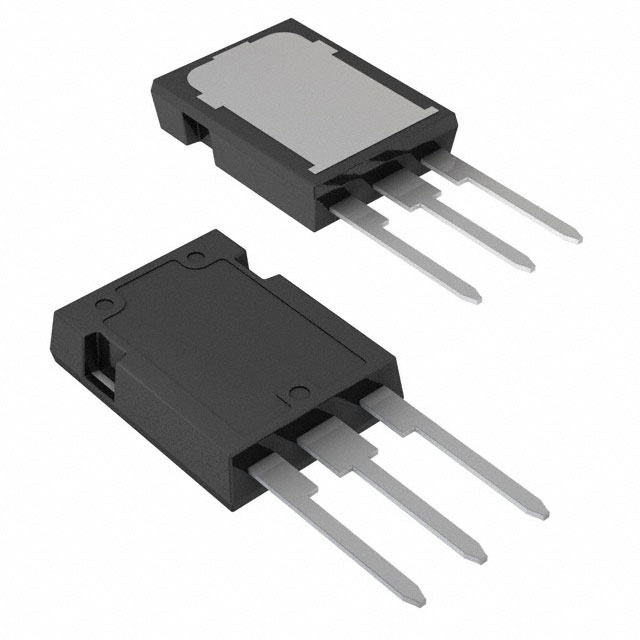

DIODE ARRAY GP 400V 30A MAX247

Search across all available documentation for this part.

Active

STMicroelectronics

DIODE ARRAY GP 400V 30A MAX247

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BYT230Y-400	BYT230 Series

Current - Average Rectified (Io) (per Diode)	30 A	30 A
Current - Reverse Leakage @ Vr	35 µA	35 - 100 µA
Diode Configuration	1 Pair Common Cathode	2 Independent, 1 Pair Common Cathode
Mounting Type	Through Hole	Chassis Mount, Through Hole
Operating Temperature - Junction	150 °C	150 °C
Package / Case	TO-247-3	ISOTOP, TO-247-3
Reverse Recovery Time (trr)	-	165 ns
Speed	200 mA, 500 ns	200 - 500 mA
Supplier Device Package	MAX247™	ISOTOP®, MAX247™
Technology	Standard	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	400 V	400 - 1000 V
Voltage - Forward (Vf) (Max) @ If	1.5 V	1.5 - 1.9 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

DIODE MODULE GP 400V 30A ISOTOP

Part	Diode Configuration	Operating Temperature - Junction	Mounting Type	Current - Average Rectified (Io) (per Diode)	Package / Case	Technology	Voltage - DC Reverse (Vr) (Max) [Max]	Speed	Supplier Device Package	Voltage - Forward (Vf) (Max) @ If	Current - Reverse Leakage @ Vr	Reverse Recovery Time (trr)
STMicroelectronics BYT230PIV-400	2 Independent	150 °C	Chassis Mount	30 A	ISOTOP	Standard	400 V	200 mA, 500 ns	ISOTOP®	1.5 V	35 µA
STMicroelectronics BYT230PIV-1000	2 Independent	150 °C	Chassis Mount	30 A	ISOTOP	Standard	1000 V	200 mA, 500 ns	ISOTOP®	1.9 V	100 µA	165 ns
STMicroelectronics BYT230Y-400	1 Pair Common Cathode	150 °C	Through Hole	30 A	TO-247-3	Standard	400 V	200 mA, 500 ns	MAX247™	1.5 V	35 µA

General part information

Diode Array 1 Pair Common Cathode 400 V 30A Through Hole TO-247-3
