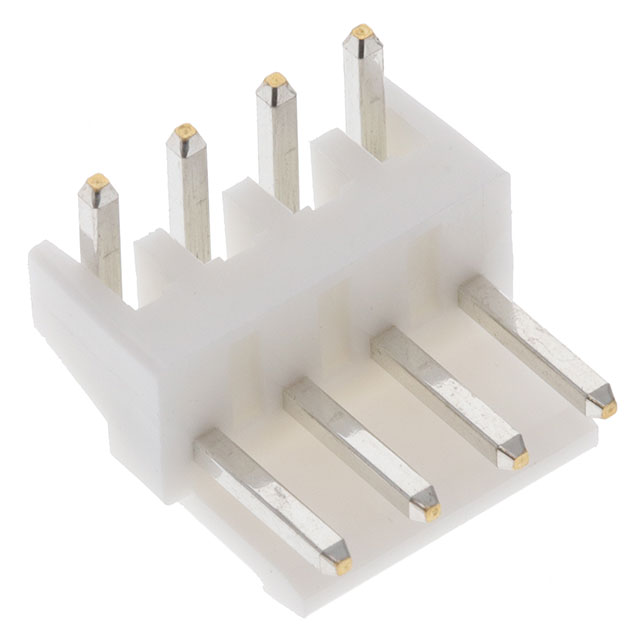

S4P-VH

Active

JST Sales America Inc.

CONN HEADER R/A 4POS 3.96MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN HEADER R/A 4POS 3.96MM

Technical Specifications

Parameters and characteristics for this part

Specification	S4P-VH

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	7.7 mm
Contact Length - Mating	0.303 in
Contact Length - Post	3.6 mm
Contact Length - Post	0.142 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	10 A
Fastening Type	Locking Ramp
Insulation Color	Natural
Insulation Height	0.335 "
Insulation Height	8.51 mm
Insulation Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating	0.156 in
Pitch - Mating	3.96 mm
Shrouding	Shrouded - 1 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VDC

Part	Contact Length - Post	Contact Length - Post	Shrouding	Contact Finish - Post	Material Flammability Rating	Number of Rows	Contact Shape	Mounting Type	Insulation Height	Insulation Height	Contact Material	Voltage Rating	Contact Type	Insulation Material	Number of Positions Loaded	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Color	Number of Positions	Termination	Style	Pitch - Mating	Pitch - Mating	Fastening Type	Connector Type	Contact Length - Mating	Contact Length - Mating
JST Sales America Inc. S4P-VH	3.6 mm	0.142 in	Shrouded - 1 Wall	Tin	UL94 V-0	1	Square	Through Hole Right Angle	0.335 "	8.51 mm	Brass	250 VDC	Male Pin	Polyamide (PA66) Nylon 6/6	All	10 A	-25 °C	85 °C	Natural	4	Solder	Board to Cable/Wire	0.156 in	3.96 mm	Locking Ramp	Header	7.7 mm	0.303 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole, Right Angle 4 position 0.156" (3.96mm)
