C8RRG-1436M

Active

CW Industries

DIP CABLE - CDR14G/AE14M/CDR14G

Search across all available documentation for this part.

Active

CW Industries

DIP CABLE - CDR14G/AE14M/CDR14G

Technical Specifications

Parameters and characteristics for this part

Part	Pitch - Connector	Pitch - Connector	Pitch - Cable	Pitch - Cable	Features	Contact Finish	Shielding	Number of Rows	Cable Termination	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Length [x]	Length [x]	Number of Positions	Usage	Color	Number of Positions
CW Industries C8RRG-1618G	0.1 in	2.54 mm	0.05 "	1.27 mm	Strain Relief	Gold	Unshielded	2	IDC	DIP to DIP Reversed	10 Áin	0.25 Ám	457.2 mm	1.5 ft	16	Board In Socket (0.3")
CW Industries C8RRG-1636G	0.1 in	2.54 mm	0.05 "	1.27 mm	Strain Relief	Gold	Unshielded	2	IDC	DIP to DIP Reversed	10 Áin	0.25 Ám	914.4 mm	3 ft	16	Board In Socket (0.3")
CW Industries C8RRG-1618M	0.1 in	2.54 mm	0.05 "	1.27 mm	Strain Relief	Gold	Unshielded	2	IDC	DIP to DIP Reversed	10 Áin	0.25 Ám	457.2 mm	1.5 ft	16	Board In Socket (0.3")	Multiple Ribbon
CW Industries C8RRG-1418G	0.1 in	2.54 mm	0.05 "	1.27 mm	Strain Relief	Gold	Unshielded	2	IDC	DIP to DIP Reversed	10 Áin	0.25 Ám	457.2 mm	1.5 ft		Board In Socket (0.3")		14
CW Industries C8RRG-1636M	0.1 in	2.54 mm	0.05 "	1.27 mm	Strain Relief	Gold	Unshielded	2	IDC	DIP to DIP Reversed	10 Áin	0.25 Ám	914.4 mm	3 ft	16	Board In Socket (0.3")	Multiple Ribbon
CW Industries C8RRG-1436M	0.1 in	2.54 mm	0.05 "	1.27 mm	Strain Relief	Gold	Unshielded	2	IDC	DIP to DIP Reversed	10 Áin	0.25 Ám	914.4 mm	3 ft		Board In Socket (0.3")	Multiple Ribbon	14

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

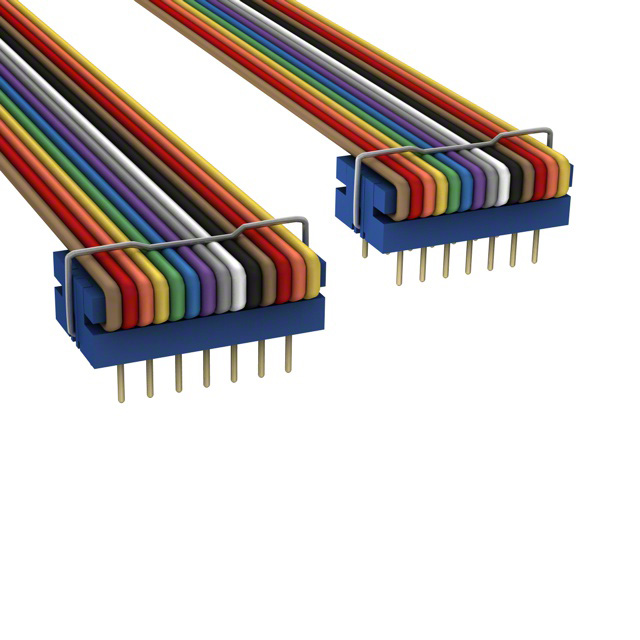

14 Position Cable Assembly Rectangular DIP to DIP, Reversed 3.00' (914.40mm)
