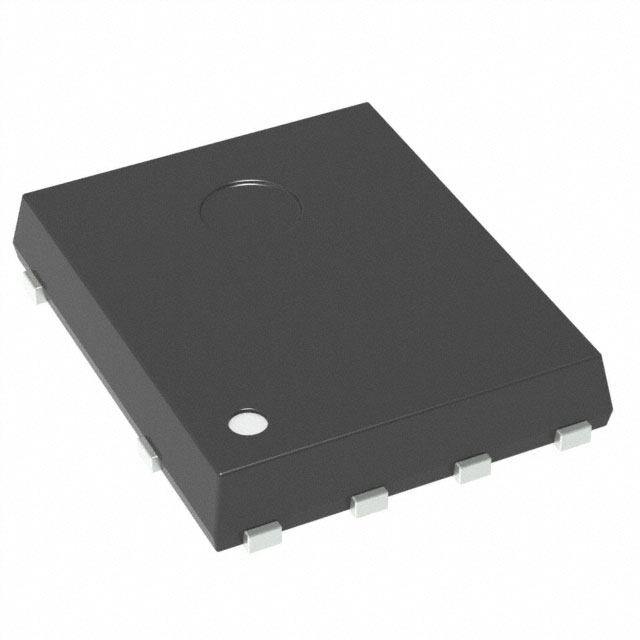

STL7LN65K5AG - 8 PowerVDFN

STL7LN65K5AG

Active
STMicroelectronics

AUTOMOTIVE-GRADE N-CHANNEL 650 V, 0.95 OHM TYP., 5 A, MDMESH K5 POWER MOSFET IN A POWERFLAT 5X6 VHV PACKAGE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsAN4337DS13267+16
STL7LN65K5AG - 8 PowerVDFN

STL7LN65K5AG

Active
STMicroelectronics

AUTOMOTIVE-GRADE N-CHANNEL 650 V, 0.95 OHM TYP., 5 A, MDMESH K5 POWER MOSFET IN A POWERFLAT 5X6 VHV PACKAGE

Deep-Dive with AI

DocumentsAN4337DS13267+16

Technical Specifications

Parameters and characteristics for this part

SpecificationSTL7LN65K5AG
Current - Continuous Drain (Id) @ 25°C5 A
Drain to Source Voltage (Vdss)650 V
Drive Voltage (Max Rds On, Min Rds On)10 V
FET TypeN-Channel
Gate Charge (Qg) (Max) @ Vgs11.7 nC
GradeAutomotive
Input Capacitance (Ciss) (Max) @ Vds270 pF
Mounting TypeSurface Mount
Operating Temperature [Max]150 °C
Operating Temperature [Min]-55 °C
Package / Case8-PowerVDFN
Power Dissipation (Max)79 W
QualificationAEC-Q101
Rds On (Max) @ Id, Vgs1.5 Ohm
Supplier Device PackagePowerFlat™ (5x6) VHV
TechnologyMOSFET (Metal Oxide)
Vgs (Max)30 V
Vgs(th) (Max) @ Id5 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 2.88
10$ 2.40
100$ 1.91
500$ 1.61
1000$ 1.37
Digi-Reel® 1$ 2.88
10$ 2.40
100$ 1.91
500$ 1.61
1000$ 1.37
Tape & Reel (TR) 3000$ 1.21

Description

General part information

STL7LN65K5AG Series

This very high voltage N-channel Power MOSFET is designed using MDmesh K5 technology based on an innovative proprietary vertical structure. The result is a dramatic reduction in on-resistance and ultra-low gate charge for applications requiring superior power density and high efficiency.
