22CC50C0125

Active

Essentra Access Solutions

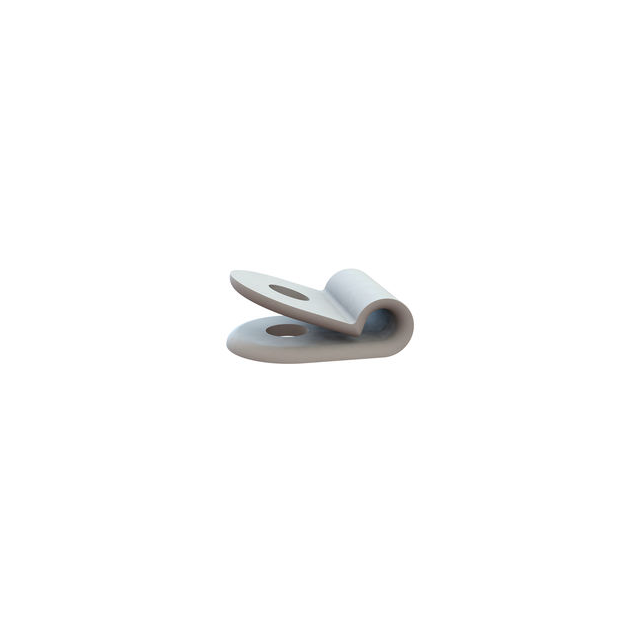

FASTENER, SCREW MOUNT CABLE CLAMP, 0.125 ", NYLON 6.6 (POLYAMIDE 6.6), NATURAL, 0.5 "

Deep-Dive with AI

Search across all available documentation for this part.

22CC50C0125

Active

Essentra Access Solutions

FASTENER, SCREW MOUNT CABLE CLAMP, 0.125 ", NYLON 6.6 (POLYAMIDE 6.6), NATURAL, 0.5 "

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	22CC50C0125

Color	Natural
Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2
Material Thickness	0.05 in
Material Thickness	1.27 mm
Mounting Type	Fastener
Opening Size	3.18 mm
Opening Size [z]	0.125 in
Panel Hole Size [diameter]	4.24 mm
Panel Hole Size [diameter]	0.167 in
Type	Clamp, P-Type

22CC50C Series

Part	Opening Size [z]	Opening Size	Mounting Type	Material Flammability Rating	Bundle Center to Mounting Center	Bundle Center to Mounting Center	Type	Material Thickness	Material Thickness	Color	Panel Hole Size [diameter]	Panel Hole Size [diameter]	Material	Opening Size [custom]	Opening Size [custom]
Essentra Access Solutions 22CC50C0875B	0.875 in	22.23 mm	Fastener	UL94 V-2	0.845 in	21.46 mm	Clamp P-Type	0.05 in	1.27 mm	Black	4.24 mm	0.167 in	Polyamide (PA66) Nylon 6/6
Essentra Access Solutions 22CC50C0187			Fastener	UL94 V-2			Clamp P-Type	0.05 in	1.27 mm	Natural	4.24 mm	0.167 in	Polyamide (PA66) Nylon 6/6	0.187 in	4.75 mm
Essentra Access Solutions 22CC50C0125	0.125 in	3.18 mm	Fastener	UL94 V-2			Clamp P-Type	0.05 in	1.27 mm	Natural	4.24 mm	0.167 in	Polyamide (PA66) Nylon 6/6

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.10
		10	$ 0.06
		25	$ 0.05
		50	$ 0.04
		100	$ 0.04
		250	$ 0.04
		500	$ 0.04
		1000	$ 0.03
		2500	$ 0.03
Newark	Each	5000	$ 0.06

Description

General part information

22CC50C Series

P style screw mount nylon cable clamp used for securing cable bundles. This screw down plastic P-clip that is easy to install and ideal for holding cables, tubes or pipes.
