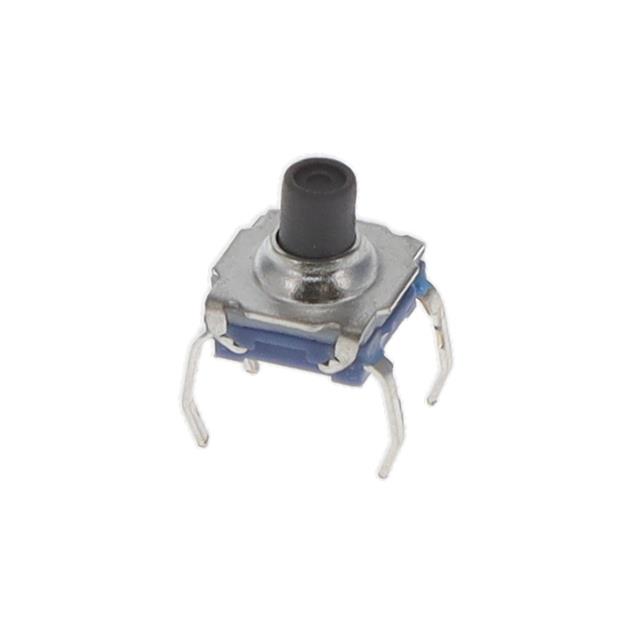

GS6.90F300QP

Active

E-Switch

MICROSWITCH TACT; SPST; POS: 2; 0.03A/24VDC; THT; 2.95N; OFF-(ON)

Search across all available documentation for this part.

Active

E-Switch

MICROSWITCH TACT; SPST; POS: 2; 0.03A/24VDC; THT; 2.95N; OFF-(ON)

Technical Specifications

Parameters and characteristics for this part

Specification	GS6.90F300QP

Actuator Height off PCB, Vertical [z]	6.9 mm
Actuator Material	Liquid Crystal Polymer (LCP)
Actuator Orientation	Top Actuated
Actuator Type	Standard
Circuit	SPST-NO
Contact Rating @ Voltage	50 VDC, 0.05 A
Illumination	Non-Illuminated
Mechanical Life	1000000 Cycles
Mounting Type	Through Hole
Operating Force	300 gf
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Outline [x]	7.2 mm
Outline [y]	7.2 mm
Switch Function	Off-Mom
Switch Travel [custom]	0.3 mm
Termination Style	PC Pin

Part	Illumination	Mounting Type	Switch Function	Mechanical Life	Switch Travel [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Outline [x]	Outline [y]	Actuator Orientation	Actuator Height off PCB, Vertical [z]	Termination Style	Actuator Type	Operating Force	Circuit	Contact Rating @ Voltage	Actuator Material
E-Switch GS6.90F300QP	Non-Illuminated	Through Hole	Off-Mom	1000000 Cycles	0.3 mm	85 °C	-40 °C	7.2 mm	7.2 mm	Top Actuated	6.9 mm	PC Pin	Standard	300 gf	SPST-NO	0.05 A 50 VDC	Liquid Crystal Polymer (LCP)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tactile Switch SPST-NO Top Actuated Through Hole
