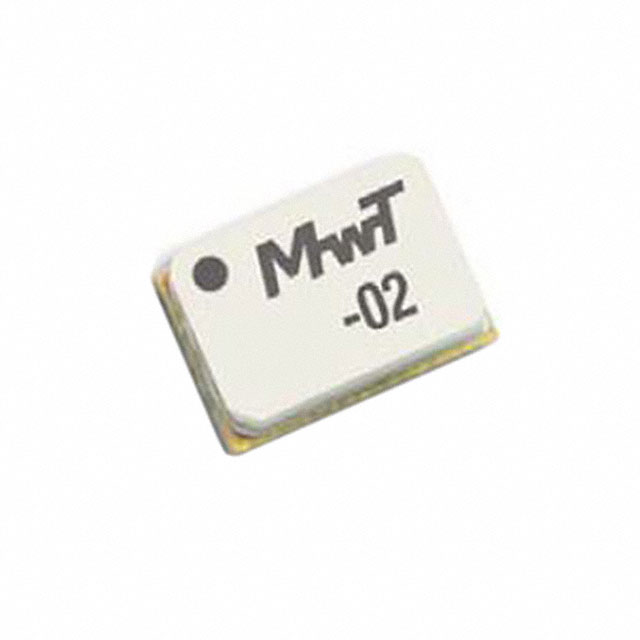

MGA-495940-02
ActiveCML Micro
IC AMP 802.16D/E 4.9GHZ-5.9GHZ
Deep-Dive with AI
Search across all available documentation for this part.
MGA-495940-02
ActiveCML Micro
IC AMP 802.16D/E 4.9GHZ-5.9GHZ
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MGA-495940-02 |
|---|---|
| Current - Supply | 400 mA |
| Frequency [Max] | 5.9 GHz |
| Frequency [Min] | 4.9 GHz |
| Gain | 12 dBi |
| Mounting Type | Surface Mount |
| P1dB | 33 dBm |
| Package / Case | 10-SMD, No Lead |
| RF Type | 802.16d/e WiMax, 802.11a/WLAN |
| Voltage - Supply | 28 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 193.44 | |
| Digi-Reel® | 1 | $ 193.44 | ||
| Tape & Reel (TR) | 10 | $ 181.35 | ||
Description
General part information
MGA-495940 Series
RF Amplifier IC 802.16d/e WiMax, 802.11a/WLAN 4.9GHz ~ 5.9GHz
