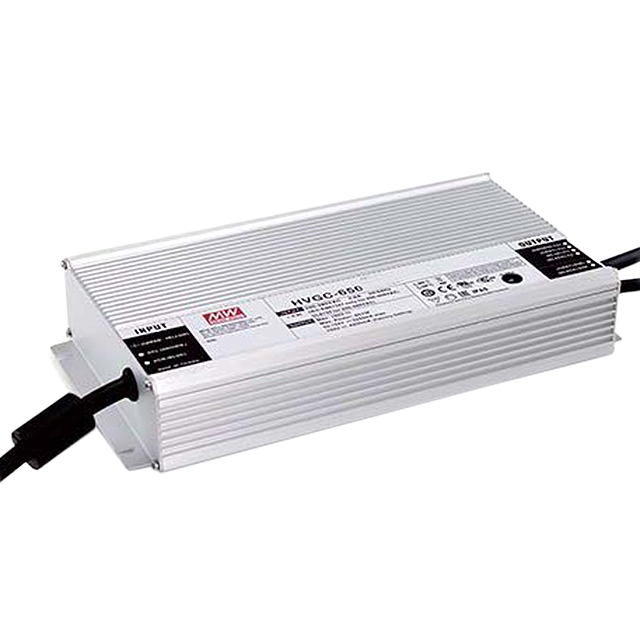

HVGC-650-L-AB

Active

MEAN WELL USA Inc.

LED DRVR CP AC/DC 240V 2.8A

Search across all available documentation for this part.

Active

MEAN WELL USA Inc.

LED DRVR CP AC/DC 240V 2.8A

Technical Specifications

Parameters and characteristics for this part

Part	Dimming	Voltage - Input (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Termination Style	Voltage - Isolation	Type	Current - Output (Max) [Max]	Number of Outputs	Topology	Approval Agency	Voltage - Output	Power (Watts)	Ratings	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Input (Max)	Features	Efficiency	Current - Output (Max)
MEAN WELL USA Inc. HVGC-650-U-AB	Analog PWM	180 VAC	90 °C	-40 °C	Chassis Mount	Wire Leads	4.2 kV	Constant Power	11.2 A	1	AC DC Converter	CB CE cURus EAC ENEC FCC	70 V	784 W	IP67	144 mm	1.91 in	48.5 mm	253.2 mm	5.67 in	9.97 in	528 VAC	OTP OVP SCP	95.5 %
MEAN WELL USA Inc. HVGC-650-M-AB	Analog PWM	180 VAC	90 °C	-40 °C	Chassis Mount	Wire Leads	4.2 kV	Constant Power	4.2 A	1	AC DC Converter	CB CE cURus EAC ENEC FCC	160 V		IP67	144 mm	1.91 in	48.5 mm	253.2 mm	5.67 in	9.97 in	528 VAC	OTP OVP SCP	95 %
MEAN WELL USA Inc. HVGC-650-L-AB	Analog PWM	180 VAC	90 °C	-40 °C	Chassis Mount	Wire Leads	4.2 kV	Constant Power		1	AC DC Converter	CB CE cURus EAC ENEC FCC	240 V		IP67	144 mm	1.91 in	48.5 mm	253.2 mm	5.67 in	9.97 in	528 VAC	OTP OVP SCP	95 %	2.8 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2.8A 240V Constant Power LED Driver AC DC Converter Topology 1 Output
