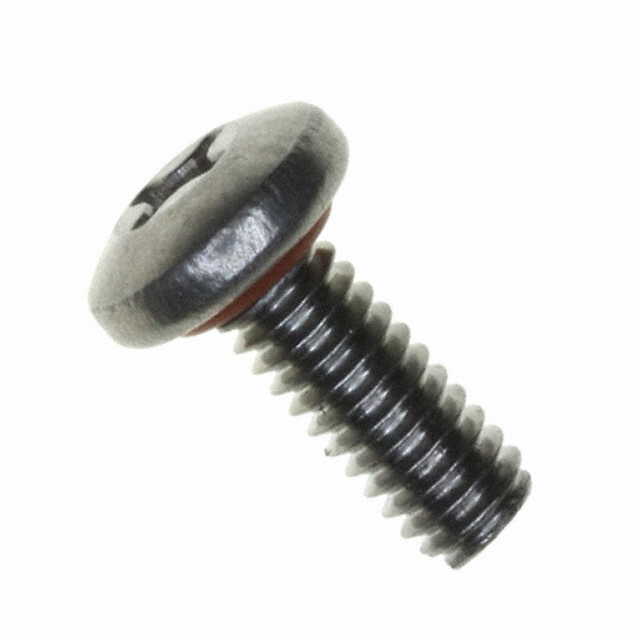

R8-32X7/16 2701

Active

APM HEXSEAL

MACHINE SCREW PAN PHILLIPS 8-32

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.81
		5	$ 0.70
		10	$ 0.58
		25	$ 0.55
		50	$ 0.52
		100	$ 0.46
		250	$ 0.44
		500	$ 0.42
		1000	$ 0.39

Description

General part information

R8-32 Series

#8-32 Pan Head Machine Screw Phillips Drive Stainless Steel

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	R8-32X7/16 2701	R8-32 Series

Drive Type	Phillips	Phillips
Features	Self Sealing	Self Sealing
Head Diameter [diameter]	0.347 in	0.347 in
Head Diameter [diameter]	8.81 mm	8.81 mm
Head Height	0.115 in	0.115 in
Head Height	2.92 mm	2.92 mm
Length - Below Head	7/16	7/16, 1/2
Length - Below Head	0.438 "	0.25 - 1 in
Length - Below Head	11.13 mm	0.375 - 25.4 mm
Length - Below Head	-	0.25 - 22.23 in
Length - Below Head	-	0.313 - 0.875 in
Length - Below Head	-	5 in
Length - Below Head	-	7.95 mm
Length - Overall	-	0.615 - 0.865 in
Length - Overall	-	15.62 - 21.97 mm
Length - Overall [x]	0.553 in	0.365 - 1.115 in
Length - Overall [x]	14.05 mm	9.27 - 28.32 mm
Material	Stainless Steel	Stainless Steel
Screw Head Type	Pan Head	Pan Head
Thread Size	#8-32	#8-32
Type	Machine Screw	Machine Screw

R8-32 Series

MACHINE SCREW PAN PHILLIPS 8-32

Part	Drive Type	Type	Head Diameter [diameter]	Head Diameter [diameter]	Length - Below Head	Length - Below Head	Length - Below Head	Features	Material	Length - Overall [x]	Length - Overall [x]	Thread Size	Head Height	Head Height	Screw Head Type	Length - Below Head [x]	Length - Below Head [x]	Length - Below Head [x]	Length - Below Head	Length - Overall	Length - Overall
APM HEXSEAL R8-32X9/16 2701	Phillips	Machine Screw	0.347 in	8.81 mm	14.3 mm	0.5625 in	0.563 in	Self Sealing	Stainless Steel	0.678 in	17.22 mm	#8-32	0.115 in	2.92 mm	Pan Head
APM HEXSEAL R8-32X1 2701	Phillips	Machine Screw	0.347 in	8.81 mm	25.4 mm		1 in	Self Sealing	Stainless Steel	1.115 "	28.32 mm	#8-32	0.115 in	2.92 mm	Pan Head
APM HEXSEAL R8-32X5/16 2701	Phillips	Machine Screw	0.347 in	8.81 mm				Self Sealing	Stainless Steel	0.428 in	10.87 mm	#8-32	0.115 in	2.92 mm	Pan Head	0.313 in	5 in	7.95 mm
APM HEXSEAL R8-32X7/16 2701	Phillips	Machine Screw	0.347 in	8.81 mm	11.13 mm		0.438 "	Self Sealing	Stainless Steel	0.553 in	14.05 mm	#8-32	0.115 in	2.92 mm	Pan Head				7/16
APM HEXSEAL R8-32X3/4 2701	Phillips	Machine Screw	0.347 in	8.81 mm	19.05 mm	0.75 "	0.75 "	Self Sealing	Stainless Steel			#8-32	0.115 in	2.92 mm	Pan Head					0.865 in	21.97 mm
APM HEXSEAL R8-32X5/8 2701	Phillips	Machine Screw	0.347 in	8.81 mm	15.88 mm	0.625 in	0.625 in	Self Sealing	Stainless Steel	0.74 in	18.8 mm	#8-32	0.115 in	2.92 mm	Pan Head
APM HEXSEAL R8-32X3/8 2701	Phillips	Machine Screw	0.347 in	8.81 mm	0.375 "	9.53 mm	0.375 "	Self Sealing	Stainless Steel	0.49 in	12.45 mm	#8-32	0.115 in	2.92 mm	Pan Head
APM HEXSEAL R8-32X1/2 2701	Phillips	Machine Screw	0.347 in	8.81 mm	12.7 mm		0.5 in	Self Sealing	Stainless Steel			#8-32	0.115 in	2.92 mm	Pan Head				1/2	0.615 in	15.62 mm
APM HEXSEAL R8-32X7/8 2701	Phillips	Machine Screw	0.347 in	8.81 mm	0.875 in	22.23 mm		Self Sealing	Stainless Steel	0.99 in	25.15 mm	#8-32	0.115 in	2.92 mm	Pan Head	0.875 in
APM HEXSEAL R8-32X1/4 2701	Phillips	Machine Screw	0.347 in	8.81 mm	6.35 mm	0.25 in	0.25 in	Self Sealing	Stainless Steel	0.365 in	9.27 mm	#8-32	0.115 in	2.92 mm	Pan Head
