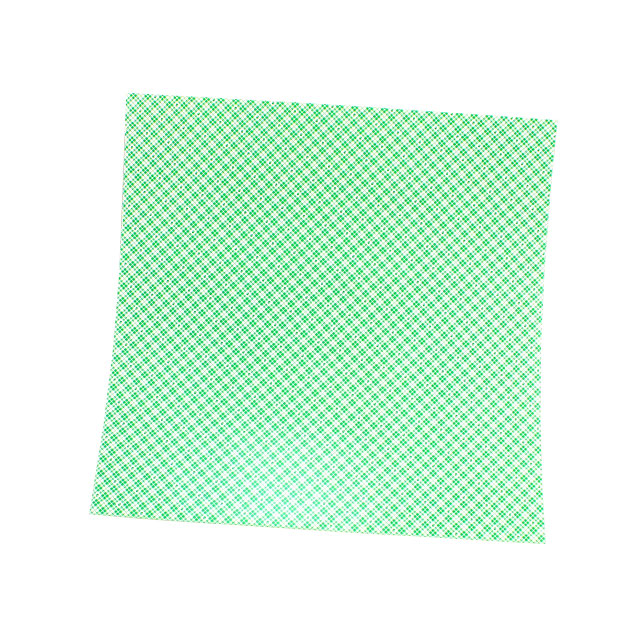

4032SQ-12(6)

Active

3M (TC)

TAPE DBL SIDED NATURAL 12"X12"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

4032SQ-12(6)

Active

3M (TC)

TAPE DBL SIDED NATURAL 12"X12"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	4032SQ-12(6)

Adhesive	Acrylic, 100
Backing, Carrier	Polyurethane Foam
Color	Natural
Length	12 "
Length	304.8 mm
Shelf Life	24 Months
Shelf Life Start	Date of Manufacture
Storage/Refrigeration Temperature	70 °F
Storage/Refrigeration Temperature	21 °C
Tape Type	Double Coated, Double Sided
Temperature Range [Max]	38 °C
Temperature Range [Max]	100 °F
Temperature Range [Min]	21 °C
Temperature Range [Min]	70 °F
Thickness	0.03125 in
Thickness	31 mils
Thickness	0.031 in
Thickness	0.787 mm
Usage	Holding, Mounting, Joining
Width [x]	304.8 mm
Width [x]	12 in

4032W Series

Part	Temperature Range	Temperature Range	Width [x]	Width [x]	Shelf Life Start	Color	Adhesive	Tape Type	Thickness	Thickness	Thickness	Storage/Refrigeration Temperature	Storage/Refrigeration Temperature	Backing, Carrier	Shelf Life	Thickness	Length	Length	Usage	Temperature Range [Max]	Temperature Range [Min]	Temperature Range [Max]	Temperature Range [Min]	Width	Width	Width	Length	Width [y]	Width [y]	Length [x]
3M (TC) 4032-1-2(324)	220 °F	104 °C	25.4 mm	1 in	Date of Manufacture	Natural	Acrylic 100	Double Coated Double Sided	0.794 mm	0.0313 in	31.3 mils	70 °F	21 °C	Polyurethane Foam	24 Months
3M (TC) 4032SQ-12(6)			304.8 mm	12 in	Date of Manufacture	Natural	Acrylic 100	Double Coated Double Sided	0.787 mm	0.031 in	31 mils	70 °F	21 °C	Polyurethane Foam	24 Months	0.03125 in	12 "	304.8 mm	Holding Joining Mounting	38 °C	21 °C	100 °F	70 °F
3M (TC) 4032-0.25-5	199 °F	93 °C			Date of Manufacture	Natural	Acrylic 100	Double Coated Double Sided	0.787 mm	0.031 in	31 mils	70 °F	21 °C	Polyurethane Foam	24 Months	0.03125 in	15 ft	4.6 m	Holding Joining Mounting					0.25 in	0.25 in	6.35 mm	5 yd
3M (TC) 4032-0.5-5					Date of Manufacture	Natural	Acrylic 100	Double Coated Double Sided	0.787 mm	0.031 in	31 mils	70 °F	21 °C	Polyurethane Foam	24 Months	0.03125 in	15 ft	4.6 m	Holding Joining Mounting	38 °C	21 °C	100 °F	70 °F	0.5 in	0.5 in	12.7 mm	5 yd
3M (TC) 4032-6-5			152.4 mm	6 in	Date of Manufacture	Natural	Acrylic 100	Double Coated Double Sided	0.787 mm	0.031 in	31 mils	70 °F	21 °C	Polyurethane Foam	24 Months	0.03125 in	15 ft	4.6 m	Holding Joining Mounting	38 °C	21 °C	100 °F	70 °F				5 yd
3M (TC) 4032-2-5					Date of Manufacture	Natural	Acrylic 100	Double Coated Double Sided	0.787 mm	0.031 in	31 mils	70 °F	21 °C	Polyurethane Foam	24 Months	0.03125 in	15 ft	4.6 m	Holding Joining Mounting	38 °C	21 °C	100 °F	70 °F				5 yd	2 "	50.8 mm
3M (TC) 4032-0.75-5					Date of Manufacture	Natural	Acrylic 100	Double Coated Double Sided	0.787 mm	0.031 in	31 mils	70 °F	21 °C	Polyurethane Foam	24 Months	0.03125 in	15 ft	4.6 m	Holding Joining Mounting	38 °C	21 °C	100 °F	70 °F	19.05 mm	0.75 in	0.75 in	5 yd
3M (TC) 4032-1-3(216)	220 °F	104 °C	25.4 mm	1 in	Date of Manufacture	Natural	Acrylic 100	Double Coated Double Sided	0.794 mm	0.0313 in	31.3 mils	70 °F	21 °C	Polyurethane Foam	24 Months			76.2 mm												3 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 30.90
		10	$ 23.62
		25	$ 21.35
		50	$ 19.83
		100	$ 18.46
		250	$ 16.86
		500	$ 15.78

Description

General part information

4032W Series

Double Coated, Double Sided Tape Acrylic, 100 Adhesive Natural 12.00" (304.80mm) X 12.00" (304.80mm)

Documents

Technical documentation and resources
