C3065.41.86
ActivePrysmian Group

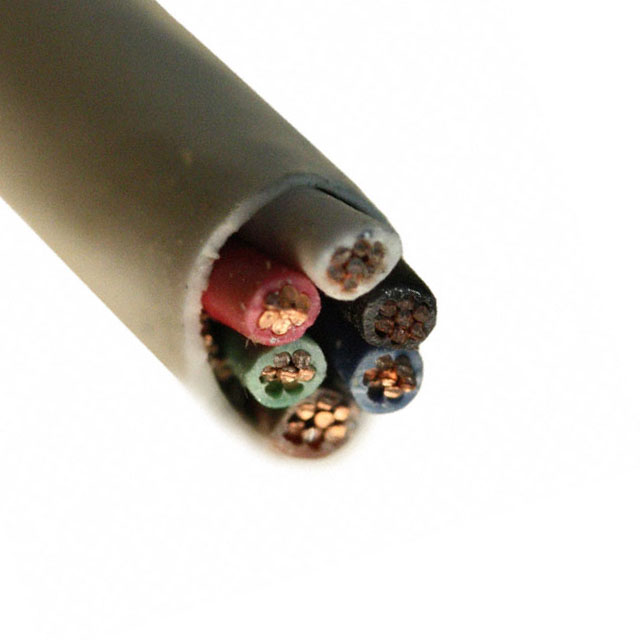

CABLE 6COND 18AWG NATURAL
Deep-Dive with AI
Search across all available documentation for this part.
C3065.41.86
ActivePrysmian Group
CABLE 6COND 18AWG NATURAL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | C3065.41.86 |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Annealed Bare |
| Conductor Strand [custom] | 26 AWG |
| Conductor Strand [custom] | 7 |
| Features | Rip Cord, Drain Wire |
| Jacket (Insulation) Diameter [diameter] | 5.84 mm |
| Jacket (Insulation) Diameter [diameter] | 0.23 in |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Thickness | 0.015 in |
| Jacket (Insulation) Thickness | 0.381 mm |
| Jacket Color | Natural |
| Length | 1000 ft |
| Length | 304.8 m |
| Length [x] | 30.5 m |
| Length [x] | 100 ft |
| Number of Conductors | 6 |
| Operating Temperature [Max] | 75 ░C |
| Operating Temperature [Min] | 0 °C |
| Ratings | ASTM B-3 |
| Shield Coverage | 100 % |
| Shield Material | Flexfoil® |
| Shield Type | Foil |
| Usage | Control, Communication |
| Voltage | 150 V |
| Wire Gauge | 18 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1 | $ 348.44 | |
| 5 | $ 285.09 | |||
| 10 | $ 221.74 | |||
| 1000 | $ 1.42 | |||
| 3000 | $ 1.33 | |||
| 5000 | $ 1.26 | |||
Description
General part information
C3065 Series
6 Conductor Multi-Conductor Cable Natural 18 AWG Foil 1000.0' (304.8m)
Documents
Technical documentation and resources
No documents available
