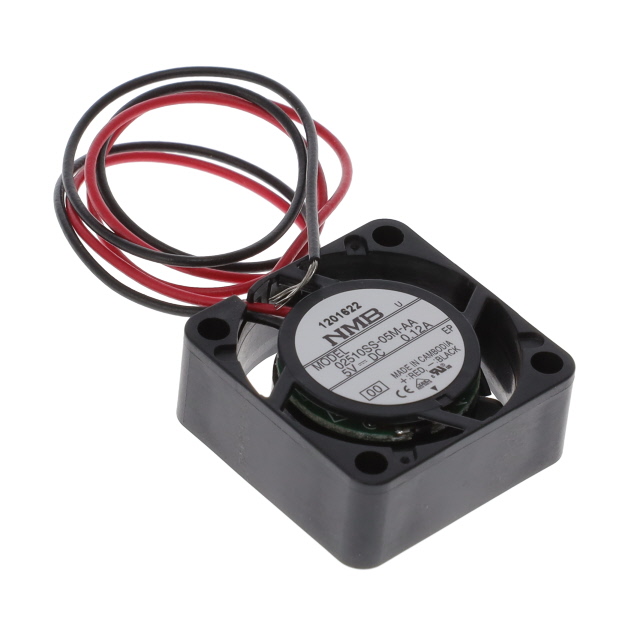

02510SS-05M-AA-00
ActiveNMB TECHNOLOGIES
FAN AXIAL 25X10MM 5VDC WIRE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
02510SS-05M-AA-00
ActiveNMB TECHNOLOGIES
FAN AXIAL 25X10MM 5VDC WIRE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 02510SS-05M-AA-00 | 02510SS Series |
|---|---|---|
| Air Flow | - | 0.073 - 0.076 m³/min |
| Air Flow | - | 2.6 - 2.7 CFM |
| Bearing Type | Sleeve | Sleeve |
| Current Rating (Amps) | - | 0.18 - 70 A |
| Fan Type | Tubeaxial | Tubeaxial |
| Features | Auto Restart | Auto Restart, Speed Sensor (Tach) |
| Lifetime @ Temp. | - | 30000 Hrs |
| Material - Blade | Plastic | Plastic |
| Material - Frame | Plastic | Plastic |
| Operating Temperature | - | 70 °C |
| Operating Temperature | - | 70 °C |
| Operating Temperature | - | -10 °C |
| Operating Temperature | - | -10 °C |
| Power (Watts) | - | 0.9 - 840 W |
| RPM | - | 13000 RPM |
| Size / Dimension [x] | 25 mm | 25 mm |
| Size / Dimension [z] | 25 mm | 25 mm |
| Static Pressure | - | 67.3 Pa |
| Static Pressure | - | 0.27 in H2O |
| Termination | 2 Wire Leads | 2 Wire Leads, 3 Wire Leads |
| Voltage - Rated | 5 V | 5 - 12 V |
| Voltage Range | - | 4.5 - 6 V |
| Voltage Range | - | 5.5 - 13.8 V |
| Weight | - | 0.018 lb |
| Weight | - | 8.16 g |
| Width [y] | 10 mm | 10 mm |
02510SS Series
DC AXIAL FAN, 5 V, SQUARE, 25 MM, 10 MM, SLEEVE BEARING, 2.65 CFM
| Part | Voltage Range [Min] | Voltage Range [Max] | Air Flow | Air Flow | Width [y] | Lifetime @ Temp. | Material - Blade | Current Rating (Amps) | Fan Type | Power (Watts) | Voltage - Rated | Material - Frame | Termination | Features | Static Pressure | Static Pressure | Bearing Type | Size / Dimension [x] | Size / Dimension [z] | Operating Temperature [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Operating Temperature [Min] | RPM | Weight | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
NMB TECHNOLOGIES 02510SS-05P-AA-00 | 4.5 V | 5.5 V | 0.076 m³/min | 2.7 CFM | 10 mm | 30000 Hrs | Plastic | 0.18 A | Tubeaxial | 0.9 W | 5 V | Plastic | 2 Wire Leads | Auto Restart | 67.3 Pa | 0.27 in H2O | Sleeve | 25 mm | 25 mm | 70 °C | 70 °C | -10 °C | -10 °C | 13000 RPM | ||
NMB TECHNOLOGIES 02510SS-05M-AT-00 | 10 mm | 30000 Hrs | Plastic | Tubeaxial | 5 V | Plastic | 3 Wire Leads | Auto Restart, Speed Sensor (Tach) | Sleeve | 25 mm | 25 mm | 70 °C | 70 °C | -10 °C | -10 °C | |||||||||||
NMB TECHNOLOGIES 02510SS-12M-AT-00 | 10 mm | 30000 Hrs | Plastic | Tubeaxial | 12 VDC | Plastic | 3 Wire Leads | Auto Restart, Speed Sensor (Tach) | Sleeve | 25 mm | 25 mm | 70 °C | 70 °C | -10 °C | -10 °C | |||||||||||
NMB TECHNOLOGIES 02510SS-05P-AT-00 | 4.5 V | 5.5 V | 0.073 mł/min | 2.6 CFM | 10 mm | Plastic | 0.18 A | Tubeaxial | 0.9 W | 5 V | Plastic | 3 Wire Leads | Speed Sensor (Tach) | 67.3 Pa | 0.27 in H2O | Sleeve | 25 mm | 25 mm | 70 °C | 70 °C | -10 °C | -10 °C | 13000 RPM | 0.018 lb | 8.16 g | |
NMB TECHNOLOGIES 02510SS-05M-AA-00 | 10 mm | Plastic | Tubeaxial | 5 V | Plastic | 2 Wire Leads | Auto Restart | Sleeve | 25 mm | 25 mm | ||||||||||||||||
NMB TECHNOLOGIES 02510SS-12P-AA-00 | 6 VDC | 13.8 VDC | 0.076 m³/min | 2.7 CFM | 10 mm | 30000 Hrs | Plastic | 70 mA | Tubeaxial | 840 mW | 12 VDC | Plastic | 2 Wire Leads | Auto Restart | 67.3 Pa | 0.27 in H2O | Sleeve | 25 mm | 25 mm | 70 °C | 70 °C | -10 °C | -10 °C | 13000 RPM | ||
NMB TECHNOLOGIES 02510SS-12M-AA-00 | 10 mm | Plastic | Tubeaxial | 12 VDC | Plastic | 2 Wire Leads | Auto Restart | Sleeve | 25 mm | 25 mm | ||||||||||||||||
NMB TECHNOLOGIES 02510SS-12P-AT-00 | 6 VDC | 13.8 VDC | 0.073 mł/min | 2.6 CFM | 10 mm | Plastic | 70 mA | Tubeaxial | 840 mW | 12 VDC | Plastic | 3 Wire Leads | Speed Sensor (Tach) | 67.3 Pa | 0.27 in H2O | Sleeve | 25 mm | 25 mm | 70 °C | 70 °C | -10 °C | -10 °C | 13000 RPM | 0.018 lb | 8.16 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 9.05 | |
| 10 | $ 8.64 | |||
| 25 | $ 8.12 | |||
| 50 | $ 7.81 | |||
| 100 | $ 7.20 | |||
| 250 | $ 6.73 | |||
| 500 | $ 6.63 | |||
Description
General part information
02510SS Series
Fan Tubeaxial 5VDC Square - 25mm L x 25mm H Sleeve 2 Wire Leads
