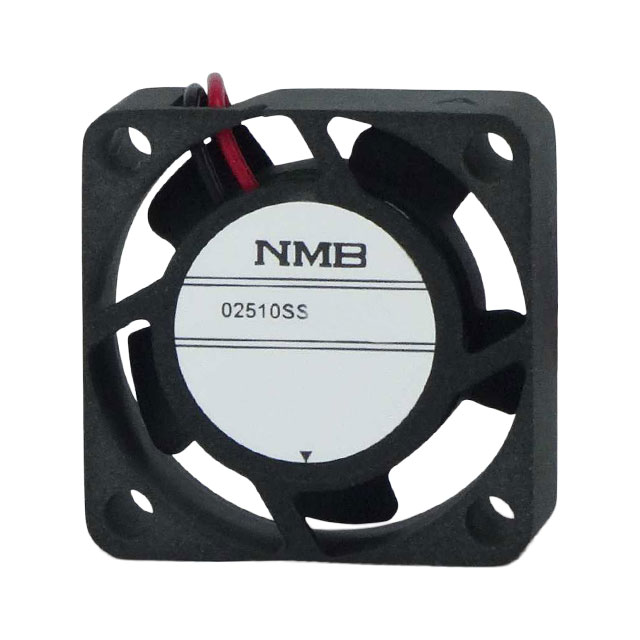

02510SS-12P-AT-00

Active

NMB TECHNOLOGIES

FAN AXIAL 25X10MM 12VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Fan Part Numbering Guide

02510SS-12P-AT-00

Active

NMB TECHNOLOGIES

FAN AXIAL 25X10MM 12VDC WIRE

Deep-Dive with AI

DocumentsDatasheet Fan Part Numbering Guide

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 6.70

Description

General part information

02510SS Series

Fan Tubeaxial 12VDC Square - 25mm L x 25mm H Sleeve 2.6 CFM (0.073m³/min) 3 Wire Leads

Documents

Technical documentation and resources

Datasheet

Fan Part Numbering Guide

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	02510SS-12P-AT-00	02510SS Series

Air Flow	0.073 mł/min	0.073 - 0.076 m³/min
Air Flow	2.6 CFM	2.6 - 2.7 CFM
Bearing Type	Sleeve	Sleeve
Current Rating (Amps)	70 mA	0.18 - 70 A
Fan Type	Tubeaxial	Tubeaxial
Features	Speed Sensor (Tach)	Auto Restart, Speed Sensor (Tach)
Lifetime @ Temp.	-	30000 Hrs
Material - Blade	Plastic	Plastic
Material - Frame	Plastic	Plastic
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-10 °C	-10 °C
Operating Temperature [Min]	-10 °C	-10 °C
Power (Watts)	840 mW	0.9 - 840 W
RPM	13000 RPM	13000 RPM
Size / Dimension [x]	25 mm	25 mm
Size / Dimension [z]	25 mm	25 mm
Static Pressure	67.3 Pa	67.3 Pa
Static Pressure	0.27 in H2O	0.27 in H2O
Termination	3 Wire Leads	2 Wire Leads, 3 Wire Leads
Voltage - Rated	12 VDC	5 - 12 V
Voltage Range [Max]	13.8 VDC	5.5 - 13.8 V
Voltage Range [Min]	6 VDC	4.5 - 6 V
Weight	0.018 lb	0.018 lb
Weight	8.16 g	8.16 g
Width [y]	10 mm	10 mm

02510SS Series

DC AXIAL FAN, 5 V, SQUARE, 25 MM, 10 MM, SLEEVE BEARING, 2.65 CFM

Part	Voltage Range [Min]	Voltage Range [Max]	Air Flow	Air Flow	Width [y]	Lifetime @ Temp.	Material - Blade	Current Rating (Amps)	Fan Type	Power (Watts)	Voltage - Rated	Material - Frame	Termination	Features	Static Pressure	Static Pressure	Bearing Type	Size / Dimension [x]	Size / Dimension [z]	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	RPM	Weight	Weight
NMB TECHNOLOGIES 02510SS-05P-AA-00	4.5 V	5.5 V	0.076 m³/min	2.7 CFM	10 mm	30000 Hrs	Plastic	0.18 A	Tubeaxial	0.9 W	5 V	Plastic	2 Wire Leads	Auto Restart	67.3 Pa	0.27 in H2O	Sleeve	25 mm	25 mm	70 °C	70 °C	-10 °C	-10 °C	13000 RPM
NMB TECHNOLOGIES 02510SS-05M-AT-00					10 mm	30000 Hrs	Plastic		Tubeaxial		5 V	Plastic	3 Wire Leads	Auto Restart, Speed Sensor (Tach)			Sleeve	25 mm	25 mm	70 °C	70 °C	-10 °C	-10 °C
NMB TECHNOLOGIES 02510SS-12M-AT-00					10 mm	30000 Hrs	Plastic		Tubeaxial		12 VDC	Plastic	3 Wire Leads	Auto Restart, Speed Sensor (Tach)			Sleeve	25 mm	25 mm	70 °C	70 °C	-10 °C	-10 °C
NMB TECHNOLOGIES 02510SS-05P-AT-00	4.5 V	5.5 V	0.073 mł/min	2.6 CFM	10 mm		Plastic	0.18 A	Tubeaxial	0.9 W	5 V	Plastic	3 Wire Leads	Speed Sensor (Tach)	67.3 Pa	0.27 in H2O	Sleeve	25 mm	25 mm	70 °C	70 °C	-10 °C	-10 °C	13000 RPM	0.018 lb	8.16 g
NMB TECHNOLOGIES 02510SS-05M-AA-00					10 mm		Plastic		Tubeaxial		5 V	Plastic	2 Wire Leads	Auto Restart			Sleeve	25 mm	25 mm
NMB TECHNOLOGIES 02510SS-12P-AA-00	6 VDC	13.8 VDC	0.076 m³/min	2.7 CFM	10 mm	30000 Hrs	Plastic	70 mA	Tubeaxial	840 mW	12 VDC	Plastic	2 Wire Leads	Auto Restart	67.3 Pa	0.27 in H2O	Sleeve	25 mm	25 mm	70 °C	70 °C	-10 °C	-10 °C	13000 RPM
NMB TECHNOLOGIES 02510SS-12M-AA-00					10 mm		Plastic		Tubeaxial		12 VDC	Plastic	2 Wire Leads	Auto Restart			Sleeve	25 mm	25 mm
NMB TECHNOLOGIES 02510SS-12P-AT-00	6 VDC	13.8 VDC	0.073 mł/min	2.6 CFM	10 mm		Plastic	70 mA	Tubeaxial	840 mW	12 VDC	Plastic	3 Wire Leads	Speed Sensor (Tach)	67.3 Pa	0.27 in H2O	Sleeve	25 mm	25 mm	70 °C	70 °C	-10 °C	-10 °C	13000 RPM	0.018 lb	8.16 g
