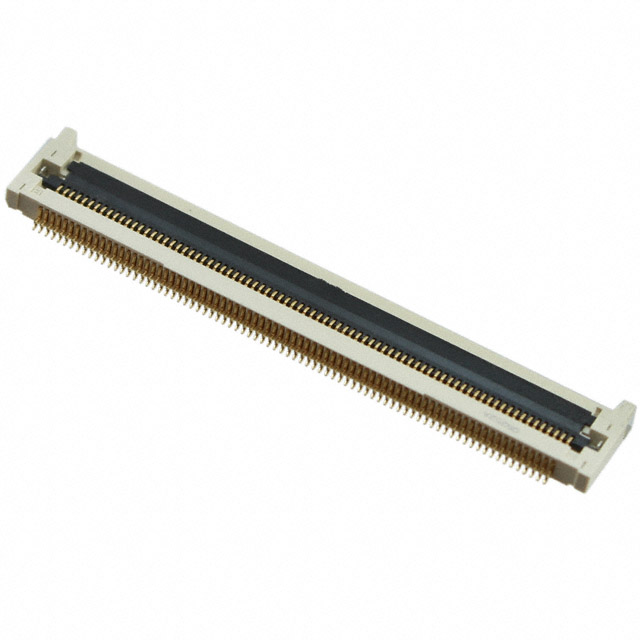

FF0380SA1

Active

JAE Electronics

CONN FPC BOTTOM 80POS 0.5MM R/A

Search across all available documentation for this part.

Active

JAE Electronics

CONN FPC BOTTOM 80POS 0.5MM R/A

Technical Specifications

Parameters and characteristics for this part

Specification	FF0380SA1

Actuator Color	Black
Actuator Material	Glass Filled, Polyamide (PA), Nylon
Cable End Type	Straight
Connector/Contact Type	Contacts, Bottom
Contact Finish	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	500 mA
FFC, FCB Thickness	0.3 mm
Flat Flex Type	FPC
Height Above Board	0.079 in
Height Above Board	2 mm
Housing Color	White
Housing Material	Liquid Crystal Polymer (LCP)
Locking Feature	Rotary Lock
Mating Cycles	20
Mounting Type	Surface Mount, Right Angle
Number of Positions	80
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.5 mm
Pitch [x]	0.02 in
Termination	Solder
Voltage Rating	50 V

Part	Termination	FFC, FCB Thickness	Current Rating (Amps)	Locking Feature	Voltage Rating	Contact Finish	Pitch [x]	Pitch [x]	Connector/Contact Type	Housing Material	Height Above Board	Height Above Board	Mounting Type	Housing Color	Actuator Material	Number of Positions	Flat Flex Type	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Cable End Type	Actuator Color	Mating Cycles
JAE Electronics FF0380SA1-R2000	Solder	0.3 mm	500 mA	Rotary Lock	50 V	Gold	0.5 mm	0.02 in	Contacts Bottom	Liquid Crystal Polymer (LCP)	0.079 in	2 mm	Surface Mount Right Angle	White	Glass Filled Nylon Polyamide (PA)	80	FPC	Copper Alloy	85 °C	-40 °C	Straight	Black	20
JAE Electronics FF0380SA1	Solder	0.3 mm	500 mA	Rotary Lock	50 V	Gold	0.5 mm	0.02 in	Contacts Bottom	Liquid Crystal Polymer (LCP)	0.079 in	2 mm	Surface Mount Right Angle	White	Glass Filled Nylon Polyamide (PA)	80	FPC	Copper Alloy	85 °C	-40 °C	Straight	Black	20

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

80 Position FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
