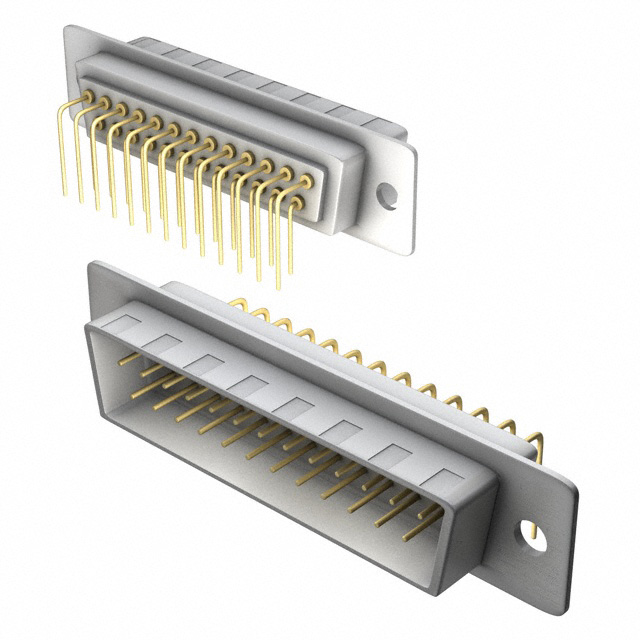

774-E25-113R001

Active

MH Connectors

STANDARD D SUB CONNECTOR, SEAL D SERIES, DB, PLUG, 25, STEEL BODY, SOLDER ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

MH Connectors

STANDARD D SUB CONNECTOR, SEAL D SERIES, DB, PLUG, 25, STEEL BODY, SOLDER ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	774-E25-113R001

Backset Spacing	9.4 mm
Backset Spacing	0.37 in
Color	White
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polyamide (PA6T), Nylon 6T
Features	Grounding Indents
Flange Feature	Housing/Shell (Unthreaded)
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Rows	2
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout [custom]	DB, B
Shell Size, Connector Layout [custom]	3
Termination	Solder

Part	Shell Material, Finish	Dielectric Material	Color	Features	Number of Rows	Contact Finish Thickness	Connector Style	Termination	Contact Type	Backset Spacing	Backset Spacing	Ingress Protection	Connector Type	Mounting Type	Material Flammability Rating	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Current Rating (Amps)	Flange Feature	Contact Finish	Contact Material
MH Connectors 774-E25-113R001	Nickel Plated Steel	Polyamide (PA6T) Nylon 6T	White	Grounding Indents	2	Flash	D-Sub	Solder	Signal	9.4 mm	0.37 in	IP67 - Dust Tight Waterproof	Male Pins Plug	Panel Mount Right Angle Through Hole	UL94 V-0	B DB	3	5 A	Housing/Shell (Unthreaded)	Gold	Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

25 Position D-Sub Plug, Male Pins Connector
